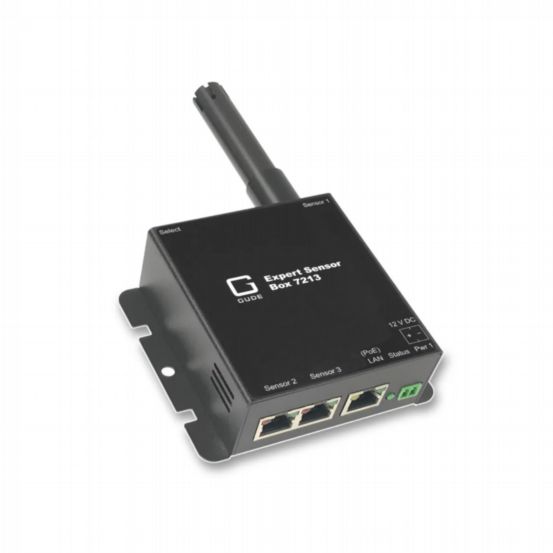

GUDE 7213-11 LAN Sensor for Environmental Monitorin with PoE

GUDE Systems
GUDE 7213-11 LAN Sensor for Environmental Monitorin with PoE

GS-721311

The GUDE 7213-11 Expert Sensor Box provides secure and proactive monitoring of IT infrastructure environments, including temperature, humidity, and air pressure. It is designed for easy installation on DIN rails or other surfaces, and it is powered via Power-over-Ethernet (PoE), eliminating the need for a separate power supply. The robust sheet steel housing protects the device in professional installations, and it supports additional optional plug-and-play sensors. The sensor box enables early detection of environmental hazards like overheating or excessive humidity, ensuring reliable operation of connected AV and IT systems. Configuration, firmware updates, and IP management can be done via web interface or Ethernet, making it flexible for integration into existing monitoring systems.

Features & Benefits

  • Integrated temperature, humidity or air pressure sensor
  • 2 ports for additional plug-and-play sensors
  • Fast and easy mounting, also on DIN rail
  • NTP function can be activated
  • Robust and compact sheet steel housing
  • Power supply via Power-over-Ethernet (PoE)
  • 2 connectors for combined plug-&-play sensors to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure
  • Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection by IP access control
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Password protected access
  • Firmware update via Ethernet during operation (no restart required)
  • Simple and flexible configuration via web browser, Windows or Linux program
  • Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
  • Rapid commissioning thanks to free and reliable drivers from our technology partners
  • Mounting on DIN rail thanks to mounting clip
  • Powdered sheet steel case, LxWxH: 100 x 34 x 90 mm (incl. brackets, excl. sensor pipe)
  • Plastic sensor pipe, Length: 94 mm, Diameter: 15 mm
  • Weight: approx. 300 g
  • Operating temperature: 0 – 50 °C
  • Operating temperature sensor pipe: -20 – 80 °C
  • Storage temperature: -20 – 70 °C
  • Relative humidity: 0-95% (non-condensing)
  • Temperature measuring range: -20 °C to +80 °C at ±2 °C (maximum) and ±1 °C (typical)
  • Humidity measuring range: 0-100% at ±3% (typical) and 10-80% at ±2% (typical)
  • Air pressure measuring range 300-1100 hPa: -20 °C to 0 °C at ±1.7 hPa (typical) and 0 °C to +65 °C at ±1 hPa (typical)
  • 2 sensor connectors RJ45 for optional sensors for temperature, humidity, air pressure
  • 1 Ethernet connector RJ45 (10/100 Mbit/s)
  • Power supply via Power-over-Ethernet
