GUDE 7213-2 LAN Sensor for Environmental Monitoring

GUDE Systems

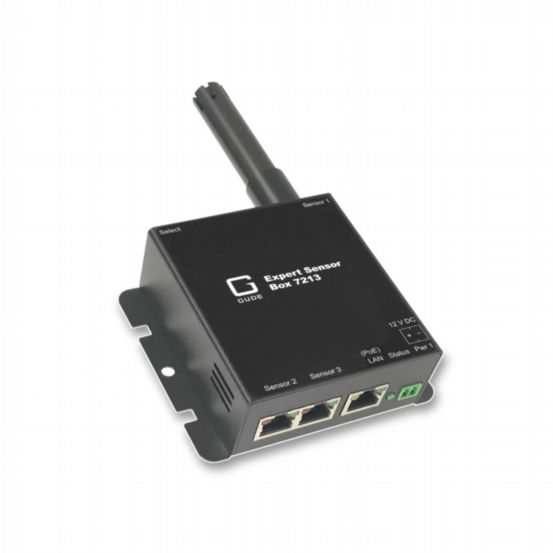

GUDE 7213-2 LAN Sensor for Environmental Monitoring

GS-72131

The GUDE 7213-2 Expert Sensor Box is designed for enhanced security and environment monitoring in IT infrastructure. It enables proactive detection of AV and IT issues through integrated temperature, humidity, and air pressure sensing, with additional ports for optional plug-and-play sensors. Installation is fast and flexible, including DIN rail mounting, and the unit can be powered via standard external power supply or Power-over-Ethernet (PoE). The robust sheet steel housing ensures durability, while firmware updates, configuration, and IP management are easily handled through Ethernet or web interfaces, helping to prevent physical hazards like overheating or excessive humidity in critical installations.

Features & Benefits

  • Integrated temperature, humidity or air pressure sensor
  • 2 ports for additional plug-and-play sensors
  • Fast and easy mounting, also on DIN rail
  • NTP function can be activated
  • Robust and compact sheet steel housing
  • Power supply also via Power-over-Ethernet (PoE) possible
  • 2 connectors for combined plug-&-play sensors to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure
  • Additional power supply via Power-over-Ethernet (PoE) possible
  • Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection by IP access control
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Password protected access
  • Firmware update via Ethernet during operation (no restart required)
  • Simple and flexible configuration via web browser, Windows or Linux program
  • Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
  • Rapid commissioning thanks to free and reliable drivers from our technology partners
  • Mounting on DIN rail thanks to mounting clip
  • Powdered sheet steel case, LxWxH: 100 x 34 x 90 mm (incl. brackets, excl. sensor pipe)
  • Plastic sensor pipe, Length: 94 mm, Diameter: 15 mm
  • Weight: approx. 300 g
  • Operating temperature: 0 – 50 °C
  • Operating temperature sensor pipe: -20 – 80 °C
  • Storage temperature: -20 – 70 °C
  • Relative humidity: 0-95% (non-condensing)
  • Temperature measuring range: -20 °C to +80 °C at ±2 °C (maximum) and ±1 °C (typical)
  • Humidity measuring range: 0-100% at ±3% (typical) and 10-80% at ±2% (typical)
  • Air pressure measuring range 300-1100 hPa: -20 °C to 0 °C at ±1.7 hPa (typical) and 0 °C to +65 °C at ±1 hPa (typical)
  • 1 connector for external power supply (industrial clamp, 2-fold)
  • 2 sensor connectors RJ45 for optional sensors for temperature, humidity, air pressure
  • 1 Ethernet connector RJ45 (10/100 Mbit/s)
  • Power supply also via Power-over-Ethernet (7213-11, 7213-12, 7213-13)
