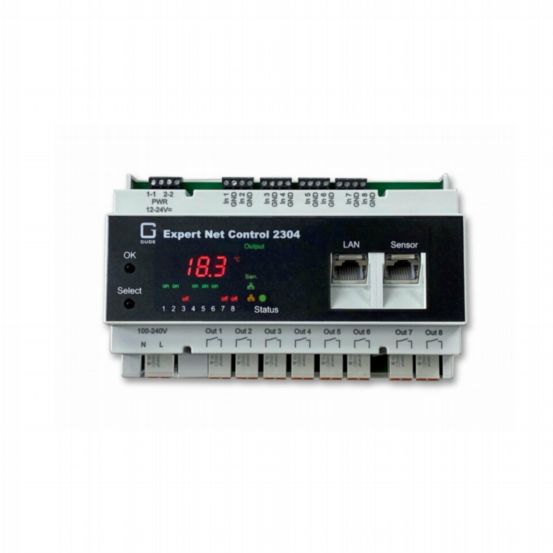

GUDE 2304-1 IP Relay Control

GUDE Systems
GUDE 2304-1 IP Relay Control

GS-23041

The GUDE 23041 provides remote monitoring and control of relay outputs and environmental inputs, ensuring high operational reliability in IT and AV environments. It supports early detection of hazards, easy integration via multiple API interfaces, plug-and-play sensor connectivity, and robust relay operation with self-healing functionality.

Features & Benefits

  • Remote switching of multiple potential-free relay outputs with high switching capacity
  • Signal inputs for polling NO/NC devices to detect environmental and operational conditions
  • 1 or more connectors for plug-and-play sensors (temperature, humidity, air pressure)
  • Fast and easy DIN rail mounting for professional installations
  • NTP function for precise time synchronisation
  • High-Inrush relays prevent sticking of relay contacts during switch-on pulse peaks
  • Automatic switching of relay outputs based on sensor thresholds or inputs
  • Sequential activation prevents simultaneous switching with built-in latency
  • LED indicators on front panel for input/output status monitoring
  • Self-healing function via watchdog for automatic restart of assigned outputs
  • Encrypted communication via SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Access protection by IP access control and password protection
  • Generation of status messages and alarms via e-mail, syslog, SNMP traps, MQTT/MQTTS, SSH, Telnet
  • Easy-to-read display for total current, IP address, and sensor values
  • Firmware update via Ethernet without restart
  • Simple configuration via web browser, Windows, or Linux software
  • Dynamic IP assignment via DHCP or manual static IP
  • Dimensions (L × W × H): approx. 105 × 90 × 70 mm
  • Weight: approx. 300 g
  • Operating temperature: 0–50 °C
  • Storage temperature: –20–70 °C
  • Relative humidity: 0–95 % non-condensing
  • Electrical connections: industrial clamp for power supply, switchable outputs, signal inputs, RJ45 for sensors, Ethernet RJ45 (10/100 Mbit/s)
  • Early detection of hazardous conditions with optional smoke, leakage, or door sensors
  • Enhances reliability, reduces downtime, and ensures safe operation of IT and AV infrastructure
