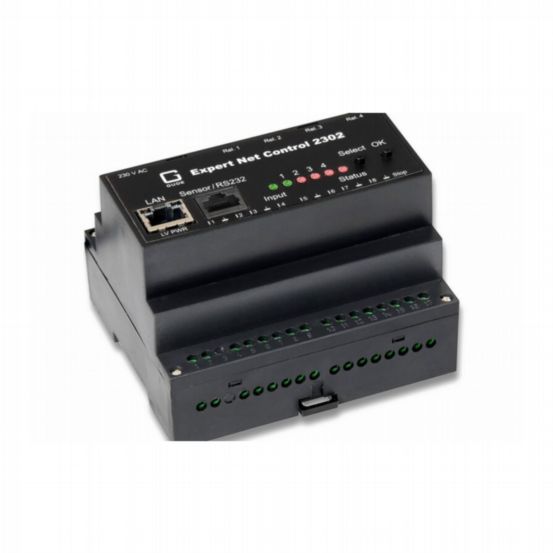

GUDE 2302-1 IP Relay Control

GS-23021

The Expert Net Control 2302-1 provides remote monitoring and switching of relay outputs, ensuring the safety and reliability of IT and AV infrastructure. It enables early detection of environmental hazards such as temperature deviations, integrates easily via multiple API interfaces, and supports plug-and-play sensors for fast hazard detection. Robust High-Inrush relays and self-healing watchdog functions guarantee reliable operation even under high load conditions.

Features & Benefits

  • Remote switching of 4 potential-free relay outputs with changeover connectors (NO and NC) and 16 A switching capacity
  • 8 signal inputs for polling NO/NC devices
  • 1 connector for plug-and-play sensors (temperature, humidity, air pressure) or serial interface RS232
  • Fast and easy DIN rail mounting
  • NTP function for precise time synchronisation
  • High-Inrush relays prevent sticking of relay contacts during switch-on pulse peaks
  • Automatic switching of relay outputs based on sensor thresholds or inputs
  • Sequential activation prevents simultaneous switching with 1-second latency
  • LED indicators on front panel show states of inputs and outputs
  • Self-healing function via 4-channel watchdog for automatic restart
  • Encrypted communication via SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Access protection by IP access control and password protection
  • Generation of status messages and alarms via e-mail, syslog, SNMP traps, MQTT/MQTTS, SSH, Telnet
  • Easy-to-read LED display for total current, IP address, and sensor values
  • Firmware update via Ethernet without restart
  • Simple configuration via web browser, Windows, or Linux software
  • Dynamic IP assignment via DHCP or manual static IP
  • Dimensions (L × W × H): 10.5 × 9 × 7 cm
  • Weight: approx. 300 g
  • Operating temperature: 0–50 °C
  • Storage temperature: –20–70 °C
  • Relative humidity: 0–95 % non-condensing
  • Electrical connections: industrial clamp for power supply (230 V AC or 24 V DC), 4 switchable outputs (industrial clamp, 3-fold), 8 passive signal inputs (industrial clamp, 2-fold), 1 RJ45 sensor connector or RS232, 1 Ethernet RJ45 connector (10/100 Mbit/s)
  • Early detection of hazardous conditions through fast integration of smoke detectors, leakage sensors, or door contacts
  • Ensures reliable and safe operation of IT and AV infrastructure with proactive monitoring and control
