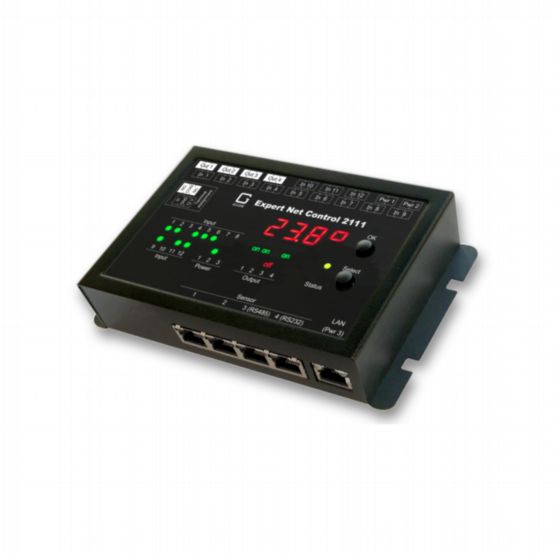

GUDE Monitoring System with 4 Relay Outputs, 12 Signal Inputs & PoE

GUDE Systems
GUDE Monitoring System with 4 Relay Outputs, 12 Signal Inputs & PoE

GS-21112

The Expert Net Control 2111-2 provides enhanced monitoring and control for IT and AV infrastructure. It reduces outages, allows remote switching of relay outputs, supports PoE power supply, and enables proactive environment and power monitoring. With plug-and-play sensor connectors, redundant power supply, and DIN rail mounting, it ensures operational reliability and protection against physical hazards.

Features & Benefits

  • 4 switchable, potential-free relay outputs with changeover connectors (NO and NC) for flexible control
  • High switching capacity: 36 V, 3 A with reliable contact even under small loads
  • Automatic switching of relay outputs based on sensor thresholds or signal inputs
  • Self-healing function via 4-channel watchdog for automatic restart
  • 12 signal inputs for polling NO/NC devices with 12 V supply per input
  • 4 connectors for optional plug-and-play sensors (temperature, humidity, air pressure) to prevent physical hazards
  • Redundant power supply with 2 industrial clamp connectors and additional Power-over-Ethernet (PoE)
  • Remote access and switching via REST API, HTTPS, SNMP, Telnet, MQTT
  • Fast and easy installation, including DIN rail mounting with clip 0860
  • NTP function for accurate time synchronisation
  • Easy-to-read LED display for total current, IP address, and sensor values
  • Firmware updates via Ethernet without restart
  • Simple configuration via web browser, Windows or Linux software
  • Rapid commissioning with free drivers from technology partners
  • Robust powder-coated sheet steel housing with versatile mounting options
  • Dimensions (L × W × H): 139 × 35 × 91 mm
  • Weight: approx. 440 g
  • Operating temperature: 0–50 °C
  • Storage temperature: –20–70 °C
  • Relative humidity: 0–95 % non-condensing
  • Electrical connections: 2 power supply connectors (industrial clamp, 2-fold), 4 switchable outputs (industrial clamp, 3-fold), 12 passive signal inputs (industrial clamp, 3-fold), 4 RJ45 sensor connectors for optional temperature, humidity and air pressure sensors, 1 Ethernet RJ45 connector (10/100 Mbit/s) with PoE option
  • Demonstrably fewer and shorter outages for critical IT and AV infrastructure
  • Early detection of AV and IT problems via proactive monitoring
  • Enhanced operational reliability and security in professional IT environments
  • Flexible integration into existing networks and monitoring systems
