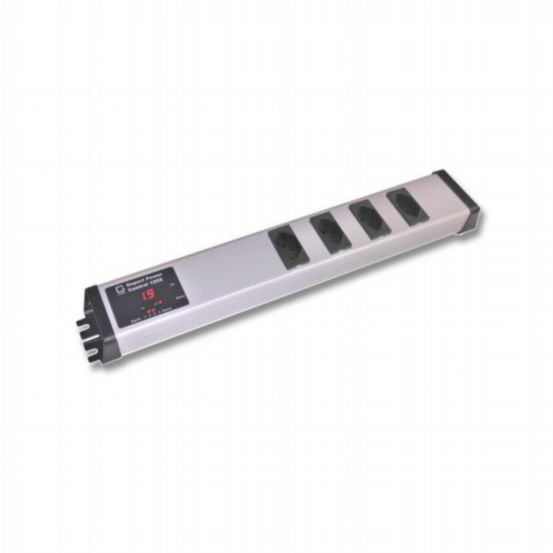

GUDE 1202-3 4-Fold Switched & Metered PDU - Type J (CH)
GS-12023
The Expert Power Control 1202-3 is a 4-port switched and metered PDU with Type J (CH) outlets, designed for secure, energy-efficient power management in 19-inch IT and AV installations. With precise power metering, programmable remote reboot, and an integrated 4-channel self-healing watchdog, it enables proactive monitoring, reduces downtime, and increases operational reliability. Its plug-and-play sensor port, overvoltage protection, and flexible network integration via REST API, SNMP, HTTPS, Telnet, or MQTT make it ideal for smart, safe, and efficient infrastructure management.
Features & Benefits
- 4x Type J (CH) power ports for secure and reliable connections
- Individual switching via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, or MQTT
- 4-channel self-healing watchdog allows automatic device restart to prevent downtime
- Event and schedule-controlled switching for energy efficiency and automation
- Sequential switch-on prevents inrush current peaks and protects connected devices
- Accurate metering of current, voltage, power factor, frequency, and energy consumption (kWh)
- Dual energy counters: one continuous, one resettable for precise tracking
- 1 mini-DIN sensor port for temperature, humidity, or air pressure monitoring
- Integrated type 3 overvoltage protection for safe operation
- Long-life high-inrush relays for durability under peak loads
- Encrypted communication (TLS 1.1–1.3, SSH) and IP-based access control
- Audible and network alerts via e-mail, SNMP traps, syslog, or MQTT
- Easy-to-read LED display for total current, IP address, and sensor values
- Firmware updates via Ethernet without rebooting
- Compact design: 47 × 7.4 × 4.6 cm, weight approx. 1 kg, 3 m connection cable
- Operating temperature: 0–50 °C, humidity: 0–95 % non-condensing
