GUDE Systems

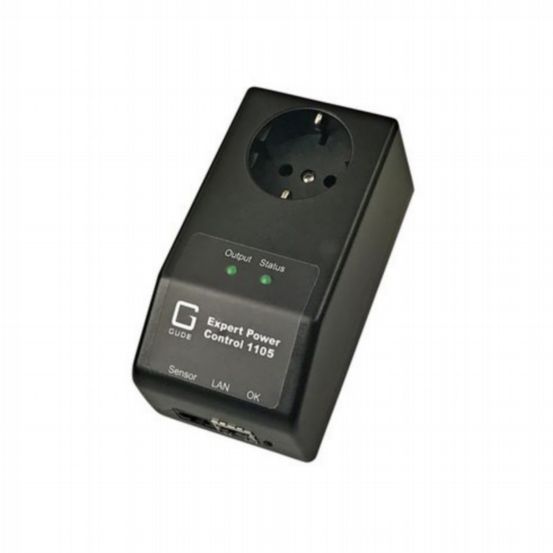

GUDE 1105-1 Switched & Metered LAN Power Socket - Type F
GS-11051
The Expert Power Control 1105-1 is a single-port switched and metered LAN power socket with Type F outlet, designed for secure, energy-efficient power management in IT and AV installations. With precise power metering, programmable remote reboot, and integrated self-healing watchdog, it enables proactive monitoring, reduces downtime, and improves operational reliability. Its plug-and-play sensor port, overvoltage protection, and encrypted communication via REST API, SNMP, HTTPS, Telnet, or MQTT make it ideal for smart and safe infrastructure management.
Features & Benefits
- 1x Type F power port for secure and reliable connection
- Individual switching via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, or MQTT
- Self-healing 1-channel watchdog allows automatic device restart to prevent downtime
- Event and schedule-controlled switching for energy efficiency and automation
- Sequential switch-on prevents inrush current peaks and protects connected devices
- Accurate metering of current, voltage, power factor, frequency, and energy consumption (kWh)
- Dual energy counters: one continuous, one resettable for precise tracking
- 1 RJ45 sensor port for temperature, humidity, or air pressure monitoring
- Integrated type 3 overvoltage protection for safe operation
- Long-life high-inrush relay for durability under peak loads
- Encrypted communication (TLS 1.1–1.3, SSH) and IP-based access control for secure operation
- Audible and network alerts via e-mail, SNMP traps, syslog, or MQTT
- Easy-to-read LED display for total current, IP address, and sensor values
- Firmware updates via Ethernet without rebooting
- Compact design: 12 × 5.3 × 6.5 cm, weight approx. 0.3 kg
- Operating temperature: 0–50 °C, humidity: 0–95 % non-condensing
