FlatPanel Audio LS212 Double 12

FlatPanel Audio

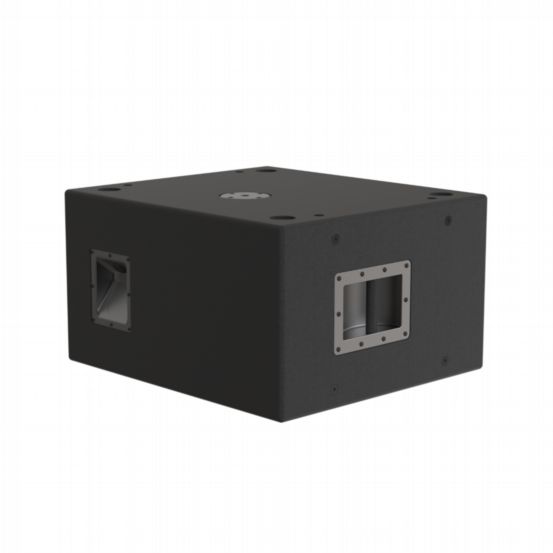

FlatPanel Audio LS212 Double 12" Low-Profile Passive Subwoofer - Black

FA-LS212-BLK

The LS212 is a compact, high-output passive subwoofer designed to complement DML500 and DML500A loudspeakers, creating a full-range system. Its dual 12" transducers in asymmetrical acoustic chambers deliver tight, musical low frequencies, making it ideal for churches, clubs, performance venues, and other AV applications. Suitable for single, dual, or quad configurations, it scales easily for multi-unit installations.

Features & Benefits

  • Dual 12" direct-radiating woofers with neodymium motors and 3" epoxy-baked copper voice coils
  • Power handling: 800 W continuous, 1,600 W program, 2,400 W peak
  • Professional 16-ply birch construction with wear-resistant polymer coating
  • Two recessed handles and low-friction feet for easy handling and cabinet movement
  • Pole-mountable (M20) and internal M10 “L” brackets for flexible rigging
  • Designed to complement DML500 and DML500A loudspeakers
  • Frequency Range (–10 dB): 40 Hz – 300 Hz
  • Frequency Response (–6 dB): 45 Hz – 120 Hz
  • System Sensitivity: 97 dB
  • Rated Maximum SPL: 130 dB peak
  • Nominal Impedance: 4 Ω
  • Dimensions (H × W × D): 378 × 676 × 605 mm (15 × 27 × 24 in)
  • Weight: 31.75 kg / 70 lbs
