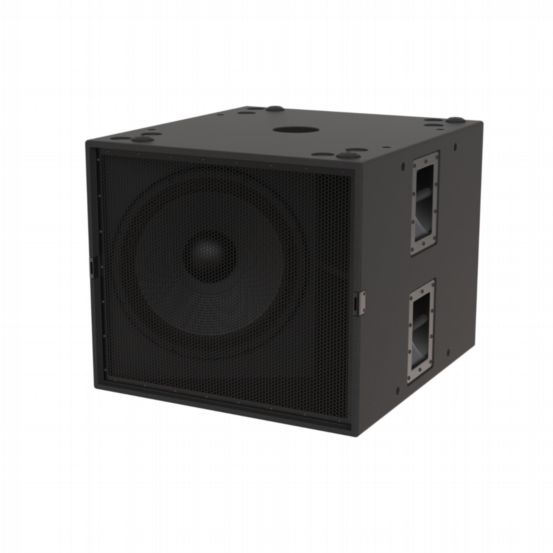

FlatPanel Audio LS118 Single 18" Front-Firing Passive Subwoofer
FA-LS118
The LS118 is a high-output, front-firing passive subwoofer with a bass reflex, semi horn-loaded design. Compact yet powerful, it delivers tight, musical low frequencies that blend perfectly with DML500 and DML500A full-range loudspeakers. Suitable for single, dual, or quad configurations, it scales effortlessly for larger systems.
Features & Benefits
- High-output 18" direct-radiating transducer with neodymium motor and 4" copper voice coil
- Power handling: 1,200 W continuous, 2,400 W program, 3,500 W peak
- Professional 16-ply birch construction with wear-resistant polymer coating
- Four recessed handles and low-friction feet for easy handling and cabinet movement
- Pole-mountable (M20) and internal M10 “L” brackets for flexible rigging
- Designed to complement DML500 and DML500A loudspeakers
- Frequency Range (–10 dB): 30 Hz – 150 Hz
- Frequency Response (–6 dB): 36 Hz – 100 Hz
- System Sensitivity: 100 dB
- Rated Maximum SPL: 138 dB peak
- Nominal Impedance: 8 Ω
- Dimensions (H × W × D): 700 × 622 × 763 mm (28 × 25 × 30 in)
- Weight: 51.7 kg / 114 lbs
