FlatPanel Audio

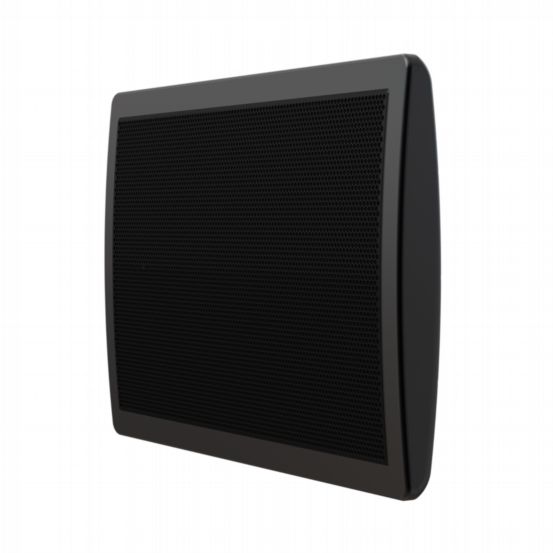

FlatPanel Audio DML500 Distributed Mode Loudspeaker - Weather Resistant
FA-DML500W
The FlatPanel Audio DML500 – Weather Resistant is a high-output 8 Ω distributed mode loudspeaker designed for outdoor and semi-outdoor use. With a carbon fiber acoustic panel, four high-power exciters, and bending wave technology, it delivers wide, even coverage and excellent speech intelligibility. Its sealed, powder-coated aluminum enclosure and VESA-compatible mounting points ensure durable, flexible installation in courtyards, transportation hubs, and other demanding environments.
Further Information
flatpanelaudio.com/dml500
Features & Benefits
- Wide, diffuse sound for reduced ear fatigue
- Stereo-stable imaging for large or reverberant outdoor spaces
- High power handling: 200 W continuous, 300 W program, 600 W peak
- 165° horizontal/vertical coverage
- Weather-resistant powder-coated die-cast aluminium frame
- Optional 200x200 VESA mounting adapter
- Carbon fibre honeycomb diaphragm for precision and durability
- Frequency Range: 75 Hz – 20 kHz (–10 dB)
- Frequency Response: 85 Hz – 20 kHz (±6 dB)
- Sensitivity: 92 dB
- Max SPL: 123 dB
- Nominal Impedance: 8 Ω
- Drivers: 4 x DML exciters, 32 mm voice coil
- Dimensions: 550 x 800 x 90 mm
- Weight: 20.3 kg
