FlatPanel Audio

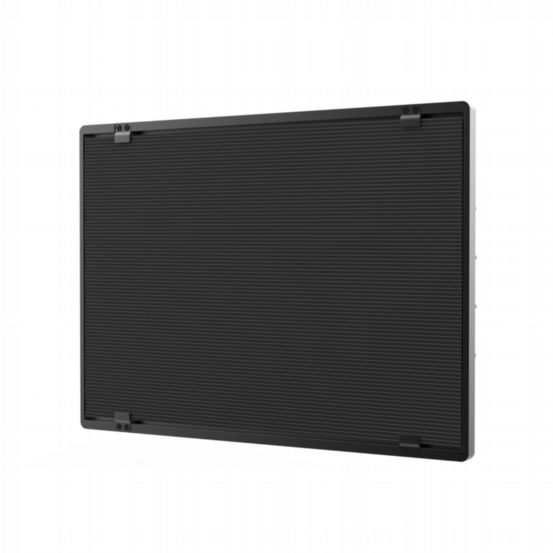

FlatPanel Audio DML500A Architectural Distributed Mode Loudspeaker
FA-DML500A
The FlatPanel Audio DML500A Architectural Distributed Mode Loudspeaker is a compact version of the DML500, ideal for custom installations where a protective enclosure is not required or space is limited. Using the same carbon fiber panel and bending wave technology, it delivers wide, even sound and excellent speech intelligibility. The DML500A can be fitted with a VESA adapter and VPM for flexible mounting but is not designed for stacked configurations, making it perfect for discreet architectural audio applications.
Features & Benefits
- Flush-mountable, ultra-thin profile for seamless integration
- Wide, diffuse waves reduce ear fatigue while improving intelligibility
- Stereo-stable imaging across large spaces, ideal for high-ceiling or reverberant rooms
- Power Handling: Continuous 200 W, program 300 W, peak 600 W
- Wide Coverage: 165° horizontal and vertical coverage for uniform sound dispersion
- Flexible Mounting: Compatible with optional 200x200 VESA adapter
- Carbon Fibre Honeycomb Panel: Lightweight, strong, and acoustically precise
- Frequency Range (–10dB): 75 Hz – 20 kHz
- Frequency Response (±6dB): 85 Hz – 20 kHz
- System Sensitivity: 92 dB
- Rated Maximum SPL: 123 dB
- Nominal Impedance: 8 Ω
- Suggested High-Pass Filter: 90 Hz Butterworth 2nd order
- Drivers: 4 x DML exciters, 32 mm voice coil (copper-clad aluminium)
- Diaphragm Design: Bending wave modal, carbon fibre honeycomb, 400 x 575 mm
- Input Connection: Pigtail 14 AWG
- Dimensions (H x W x D): 437 mm x 596 mm x 56 mm (17.2 in x 23.4 in x 2.2 in)
- Weight: 7.72 kg / 17 lbs
