FlatPanel Audio

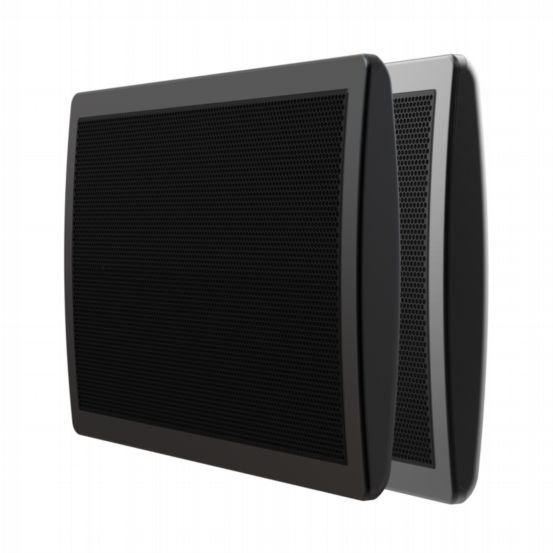

FlatPanel Audio DML500 Distributed Mode Loudspeaker - Custom Colour
FA-DML500-CUS
The FlatPanel Audio DML500 Distributed Mode Loudspeaker – Custom Colour combines high-output performance with a customizable finish for seamless integration into any architectural space. This 8-ohm carbon fiber panel speaker uses advanced bending wave technology and four high-power exciters to deliver wide, even sound coverage and excellent speech intelligibility. Its durable powder-coated aluminum enclosure and VESA-compatible mounting system make installation easy and reliable, ideal for conference rooms, museums, hospitality venues, and modern commercial environments.
Features & Benefits
- Wide, diffuse sound for reduced ear fatigue
- Stereo-stable imaging in large or reverberant spaces
- High power handling: 200 W continuous, 300 W program, 600 W peak
- 165° horizontal/vertical coverage
- Rugged powder-coated die-cast aluminium frame
- Optional 200x200 VESA mounting adapter
- Carbon fibre honeycomb diaphragm for precision and durability
- Custom colour options for seamless aesthetic integration
- Frequency Range: 75 Hz – 20 kHz (–10 dB)
- Frequency Response: 85 Hz – 20 kHz (±6 dB)
- Sensitivity: 92 dB
- Max SPL: 123 dB
- Nominal Impedance: 8 Ω
- Drivers: 4 x DML exciters, 32 mm voice coil
- Dimensions: 550 x 800 x 90 mm
- Weight: 20.3 kg
