FlatPanel Audio

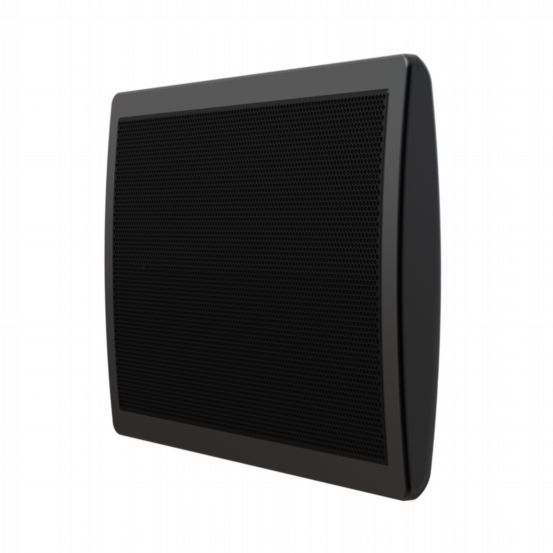

FlatPanel Audio DML500 Distributed Mode Loudspeaker - Black
FA-DML500-BLK
The FlatPanel Audio DML500 Distributed Mode Loudspeaker is a high-output 8-ohm large-format carbon fiber acoustic panel speaker engineered for superior performance in demanding commercial and architectural audio installations. Powered by four high-power exciter motor structures and utilizing advanced bending wave technology, the DML500 delivers smooth, wide-dispersion sound with excellent speech intelligibility, making it perfect for conference rooms, museums, transportation hubs, and other acoustically challenging spaces. Its rugged powder-coated die-cast aluminum enclosure and durable frame with multiple VESA-compatible mounting points provide easy, flexible installation and long-lasting reliability, ensuring professional-grade sound reproduction in any environment.
Features & Benefits
- Wide, diffuse sound for reduced ear fatigue
- Stereo-stable imaging in large or reverberant spaces
- High power handling: 200 W continuous, 300 W program, 600 W peak
- 165° horizontal/vertical coverage
- Rugged powder-coated die-cast aluminium frame
- Optional 200x200 VESA mounting adapter
- Carbon fibre honeycomb diaphragm for precision and durability
- Frequency Range: 75 Hz – 20 kHz (–10 dB)
- Frequency Response: 85 Hz – 20 kHz (±6 dB)
- Sensitivity: 92 dB | Max SPL: 123 dB | Nominal Impedance: 8 Ω
- Drivers: 4 x DML exciters, 32 mm voice coil
- Dimensions: 550 x 800 x 90 mm
- Weight: 20.3 kg
