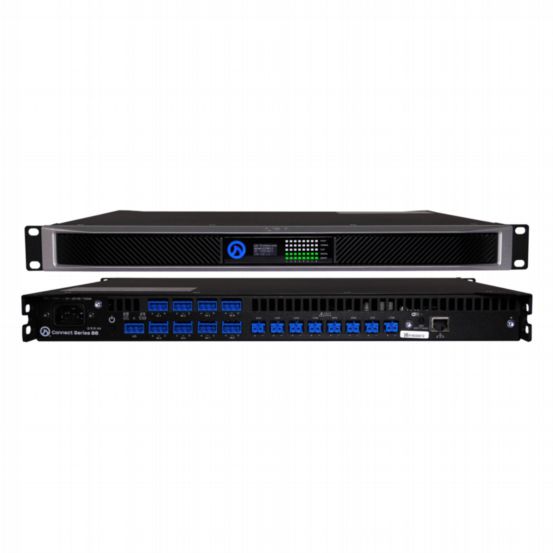

LEA CONNECT 88D Networkable 8-Channel Amplifier with Dante
FA-CS88D
The LEA CONNECT 88D is a professional 8-channel amplifier delivering 80W per channel, part of the Dante CONNECT Series—the world’s first IoT-enabled professional amplifiers. It features selectable Lo-Z, 70V, or 100V outputs per channel, fully routable analog and Dante inputs, and integrated 96kHz DSP with routing, EQ, crossovers, and speaker protection. With WebUI access on any device, LEA Cloud connectivity, Smart Power Bridge technology, and multiple network options—including built-in Wi-Fi, existing Wi-Fi, or Ethernet—this amplifier provides complete control, remote monitoring, and flexible deployment for small to medium-scale professional installations. External I/O enables remote on/off and fault monitoring, while the Class D output stage ensures efficient low AC current draw.
Features & Benefits
- Web browser-based UI works on any device with no software download required
- Direct Lo-Z and Hi-Z outputs are 70V or 100V selectable per channel
- Smart Power Bridge allows doubling any single channel’s power without affecting other channels
- Three network connection options: built-in Wi-Fi AP, existing Wi-Fi, or Ethernet LAN
- 96kHz DSP with input routing, 48dB/oct crossover filters, 8 parametric EQs, speaker limiters, and real-time load monitoring
- Universal switch mode power supply with PFC, operating from 100–240VAC ±15%
- Fully routable analog and Dante inputs for flexible networked audio management
- External I/O port provides remote On/Off and fault monitoring
- Highly efficient Class D output stage for low AC current draw
- LEA Cloud integration enables secure remote monitoring, notifications, and control from anywhere
