FlatPanel Audio

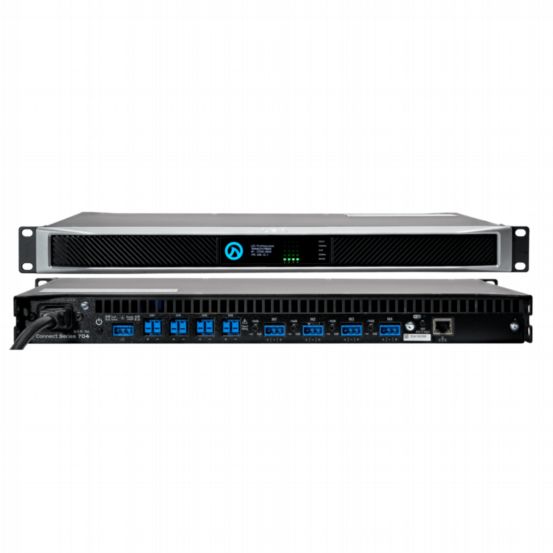

LEA CONNECT 704 Networkable 4-Channel Amplifier
FA-CS704
The LEA CONNECT 704 is a professional 4-channel amplifier delivering 700W per channel. Part of the IoT-enabled Network CONNECT Series, it offers selectable Lo-Z, 70V, or 100V outputs per channel, fully routable analog inputs, and integrated 96kHz DSP with routing, EQ, crossovers, and speaker protection. With WebUI access on any device, LEA Cloud connectivity, Smart Power Bridge technology, and multiple network options—including built-in Wi-Fi, existing Wi-Fi, or Ethernet—this amplifier provides full control, monitoring, and flexible deployment for small to medium-scale professional installations. External I/O allows remote on/off and fault monitoring, making it ideal for a wide range of applications.
Features & Benefits
- Web browser-based UI works on any device with no software download required
- 96kHz DSP with input routing, 48dB/oct crossover filters, 8 parametric EQs, speaker limiters, and real-time load monitoring
- Direct Lo-Z and Hi-Z outputs are 70V or 100V selectable per channel
- Smart Power Bridge allows doubling any single channel’s power without affecting other channels
- Three network connection options: built-in Wi-Fi AP, existing Wi-Fi, or Ethernet LAN
- Universal switch mode power supply with PFC, operating from 100–240VAC ±15%
- Fully routable analog inputs for flexible source management
- External I/O port provides remote On/Off and fault monitoring
- Highly efficient Class D output stage for low AC current draw
