FlatPanel Audio

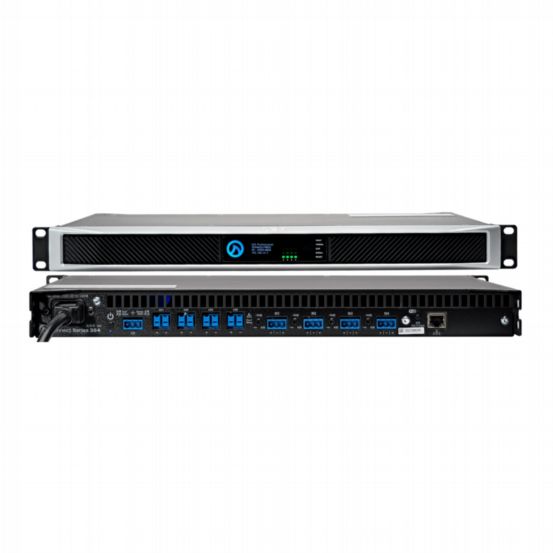

LEA CONNECT 354D Networkable 4-Channel Amplifier with Dante
FA-CS354D
The LEA CONNECT 354D is a professional 4-channel amplifier delivering 350W per channel, part of the Dante CONNECT Series—the world’s first IoT-enabled professional-grade amplifiers. It offers selectable Lo-Z, 70V, or 100V outputs per channel, fully routable analog and Dante inputs, integrated 96kHz DSP, and Smart Power Bridge technology. With WebUI access on any device, LEA Cloud connectivity, and multiple network options—including built-in Wi-Fi, existing Wi-Fi, or Ethernet—this amplifier provides complete control, monitoring, and flexibility for small to medium-scale professional installations. External I/O enables remote on/off and fault monitoring, making it ideal for versatile applications.
Features & Benefits
- Web browser-based UI works on any device with no software download required
- 96kHz DSP with input routing, 48dB/oct crossover filters, 8 parametric EQs, speaker limiters, and real-time load monitoring
- Direct Lo-Z and Hi-Z outputs are 70V or 100V selectable per channel
- Smart Power Bridge allows doubling any single channel’s power without affecting other channels
- Three network connection options: built-in Wi-Fi AP, existing Wi-Fi, or Ethernet LAN
- Universal switch mode power supply with PFC, operating from 100–240VAC ±15%
- Fully routable analog and Dante inputs for flexible source management
- External I/O port provides remote On/Off and fault monitoring
- Highly efficient Class D output stage for low AC current draw
