FlatPanel Audio

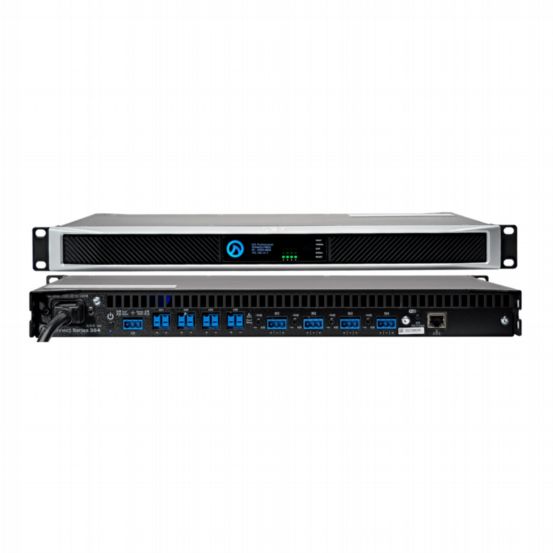

LEA CONNECT 354 Networkable 4-Channel Amplifier
FA-CS354
The LEA CONNECT 354 is a professional 4-channel amplifier delivering 350W per channel. Part of the IoT-enabled Network CONNECT Series, it features selectable Lo-Z, 70V, or 100V outputs per channel, fully routable analog inputs, integrated 96kHz DSP, and Smart Power Bridge technology. With WebUI access on any device, LEA Cloud connectivity, and multiple network options—including built-in Wi-Fi, existing Wi-Fi, or Ethernet—this amplifier provides full control, monitoring, and flexibility for small to medium-scale professional installations. External I/O allows remote on/off and fault monitoring, making it ideal for a wide range of applications.
Features & Benefits
- Web browser-based UI works on any device with no software download required
- 96kHz DSP with input routing, 48dB/oct crossover filters, 8 parametric EQs, speaker limiters, and real-time load monitoring
- Direct Lo-Z and Hi-Z outputs are 70V or 100V selectable per channel
- Smart Power Bridge allows doubling any single channel’s power without affecting other channels
- Three network connection options: built-in Wi-Fi AP, existing Wi-Fi, or Ethernet LAN
- Universal switch mode power supply with PFC, operating from 100–240VAC ±15%
- Fully routable analog inputs for flexible source management
- External I/O port provides remote On/Off and fault monitoring
- Highly efficient Class D output stage for low AC current draw
