FlatPanel Audio

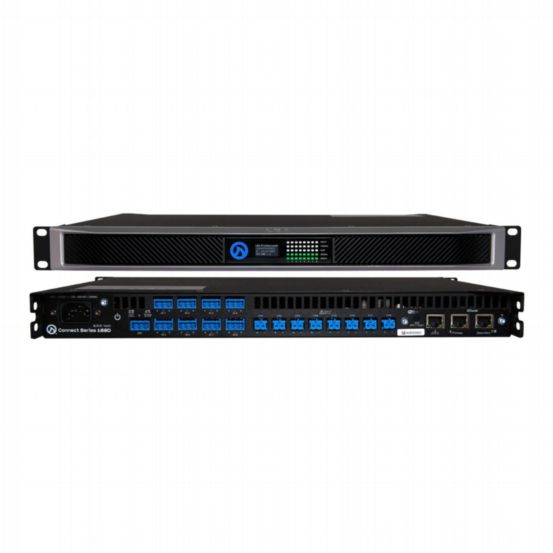

LEA CONNECT 168D Networkable 8-Channel Amplifier with Dante
FA-CS168D
The LEA CONNECT 168D is a professional 8-channel amplifier delivering 160W per channel, with selectable Lo-Z, 70V, or 100V outputs per channel. Part of the Dante CONNECT Series—the world’s first IoT-enabled professional amplifiers—it combines Dante and analog inputs, fully routable signal paths, and external I/O for remote on/off and fault monitoring. With 96kHz DSP, Smart Power Bridge technology, WebUI access from any device, LEA Cloud integration, and multiple network options—including built-in Wi-Fi, existing Wi-Fi, or Ethernet—this amplifier provides complete control and monitoring for small to medium-scale installations. Cloud connectivity allows remote management, notifications, and system control from anywhere.
Features & Benefits
- Web browser-based UI works on any device with no software download required
- 96kHz DSP with input routing, 48dB/oct crossover filters, 8 parametric EQs, speaker limiters, and real-time load monitoring
- Direct Lo-Z and Hi-Z outputs are 70V or 100V selectable per channel
- Smart Power Bridge allows doubling any single channel’s power without affecting other channels
- Three network connection options: built-in Wi-Fi AP, existing Wi-Fi, or Ethernet LAN
- Universal switch mode power supply with PFC, operating from 100–240VAC ±15%
- Fully routable analog and Dante inputs for flexible source management
- External I/O port provides remote On/Off and fault monitoring
- Highly efficient Class D output stage for low AC current draw
