FlatPanel Audio

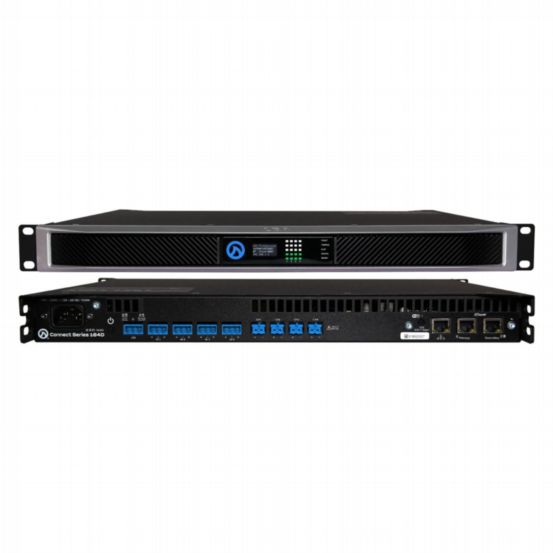

LEA CONNECT 164D Networkable 4-Channel Amplifier with Dante
FA-CS164D
The LEA CONNECT 164D is a powerful, network-ready 4-channel amplifier delivering 160W per channel with selectable Lo-Z, 70V, or 100V outputs per channel. Part of the Dante CONNECT Series, it combines professional-grade audio performance with IoT-enabled features, including 96kHz DSP, WebUI, LEA Cloud connectivity, and Smart Power Bridge technology. With fully routable analog and Dante inputs, external I/O for remote on/off and fault monitoring, and multiple network options—including built-in Wi-Fi, existing Wi-Fi, or Ethernet—the 164D provides complete control and flexibility for small to medium-scale installations. Remote cloud management allows monitoring, notifications, and system control from any device anywhere.
Features & Benefits
- Web browser-based UI works on any device with no software download required
- 96kHz DSP with input routing, 48dB/oct crossover filters, 8 parametric EQs, speaker limiters, and real-time load monitoring
- Direct Lo-Z and Hi-Z outputs are 70V or 100V selectable per channel
- Smart Power Bridge allows doubling a channel’s power without affecting other channels
- Three network connection options: built-in Wi-Fi AP, existing Wi-Fi, or Ethernet LAN
- Universal switch mode power supply with PFC, operating from 100–240VAC ±15%
- Fully routable analog and Dante inputs for flexible source management
- External I/O port provides remote On/Off and fault monitoring
- Highly efficient Class D output stage for low AC current draw
