FlatPanel Audio

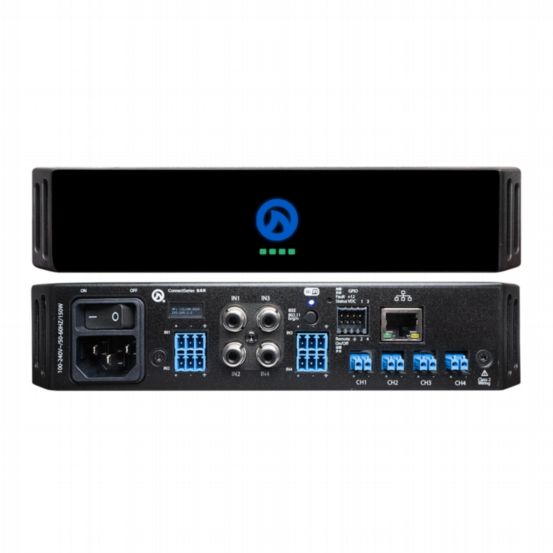

LEA CONNECT CS124D Networkable 4- Channel Amplifier with Dante
FA-CS124D
The LEA CONNECT 124D delivers a professional, feature-rich amplifier in a compact half-rack form factor. With 4 channels at 120W per channel, selectable Lo-Z, 70V, or 100V outputs, and optional Dante/AES67 connectivity, it offers maximum flexibility for any installation. Equipped with 96kHz DSP, WebUI, SharkWare, LEA Cloud, and third-party API integration, it allows full control over routing, speaker tuning, and monitoring. The fully routable analog inputs, multiple network options, and Smart Power Bridge make it ideal for installations of all sizes, with cloud-based remote control from anywhere.
Features & Benefits
- Web browser-based UI works on any device with no software download required
- Cloud control enables remote monitoring and control from anywhere without VPN
- Direct Lo-Z and Hi-Z outputs are 70V or 100V selectable per channel
- Smart Power Bridge allows doubling any single channel’s power without affecting others
- Fully routable analog balanced or unbalanced inputs via WebUI, SharkWare, or Cloud
- Four amplifier channels deliver 120W per channel in a compact half-rack design
- Dante and AES67 connectivity available on D-unit models for networked audio
- Three network connection options: built-in Wi-Fi AP, existing Wi-Fi, or Ethernet LAN
- 96kHz DSP provides advanced routing, speaker tuning, filters, and parametric EQ
