FlatPanel Audio

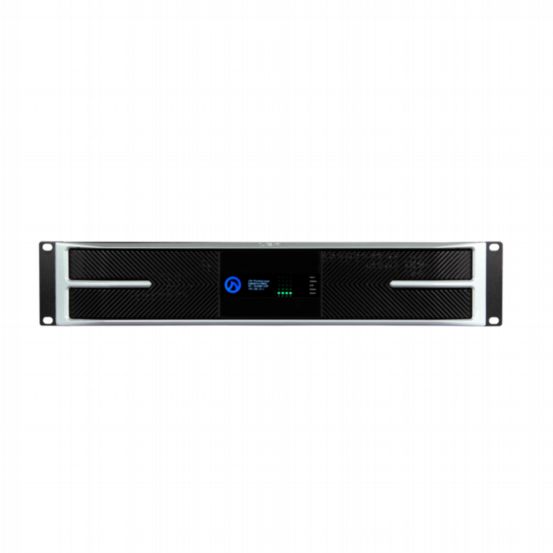

LEA CONNECT Networkable 4-Channel Amplifier with Dante
FA-C1504D
The LEA CS1504D is a high-power, IoT-enabled four-channel amplifier with Dante and Cloud connectivity, delivering 1,500 W per channel. Ideal for professional installations, it features versatile Lo-Z, 70 V, or 100 V output per channel, integrated DSP, and three network connection options for flexible control.
Features & Benefits
- WebUI works on any device—no software required, just three clicks
- Lo-Z and Hi-Z (70 V or 100 V) selectable per channel
- Proprietary Smart Power Bridge doubles channel power without sacrificing other channels
- Three network options: built-in Wi-Fi AP, existing Wi-Fi, or Ethernet LAN
- 96 kHz DSP with input routing, 48 dB/octave crossovers, 8-band parametric EQ, speaker limiters, and real-time load monitoring
- External I/O for remote on/off and amplifier fault monitoring
- Highly efficient Class D output stage with low AC current draw
- AWS IoT Core cloud connectivity for remote monitoring and control
- Output Power: 1,500 W per channel
- Inputs: Fully routable analog inputs
- Frequency Response & DSP: 96 kHz SHARC processor with configurable filters and EQ
- Power Supply: Universal switch-mode, 100 V–240 V AC ±15%
- Dimensions (HxWxD): Half-rack form factor
- Cooling: Variable fan for quiet operation
- Connectivity: Dante, AES67, Wi-Fi, Ethernet, Cloud-enabled
