FlatPanel Audio

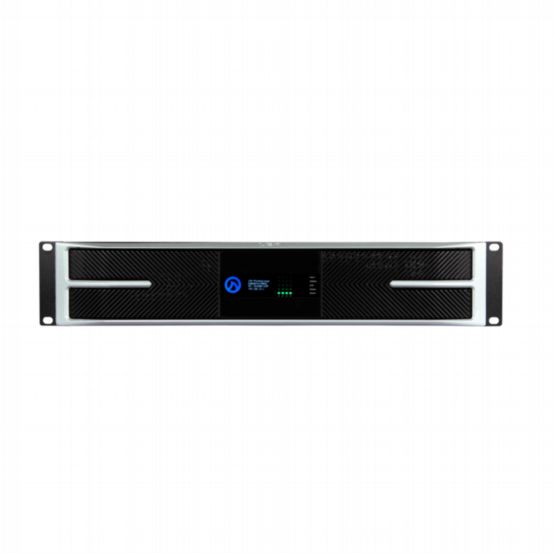

LEA CONNECT 1504 Networkable 4-Channel Amplifier
FA-C1504
The LEA CONNECT 1504 is a high-power, IoT-enabled four-channel amplifier delivering 1,500 W per channel. Available in NETWORK CONNECT and DANTE CONNECT versions, it features Dante and AES67 connectivity, plus multiple network options including Wi-Fi Access Point, existing Wi-Fi networks, or Ethernet LAN. Perfect for professional installations requiring smart control, high power, and precision DSP.
Features & Benefits
- Four channels at 1,500 W each (2 Ω, 4 Ω, 8 Ω, 70 V, 100 V)
- IoT-enabled with web UI, LEA Cloud, SharkWare, and 3rd party API control
- DSP: 96 kHz 32-bit SHARC processor with parametric EQ, crossovers, FIR & IIR filters, and per-channel delay
- Smart Power Bridge for bridged outputs without sacrificing channels
- High fidelity: THD+N 0.1%, S/N 105 dB, crosstalk 70 dB
- Multiple network connections: Wi-Fi AP, existing Wi-Fi, Ethernet with PoE
- External I/O for remote on/off and amplifier status monitoring
- Cloud IoT functionality via AWS LEA Professional Cloud
- Safety & compliance: UL, CE, ETL, FCC, CCC, ROHS, EN54-16
- Frequency Response: ±0.5 dB @ 4 Ω, 8 Ω, 70 V, 100 V; –2.5 dB @ 20 kHz (2 Ω)
- Input: 4 balanced analog, selectable 26 dB / 34 dB sensitivity
- Output Protection: DC, VHF, AC mains, over-temperature, current limiter, fan fault
- Load Capability: down to 2 Ω, 70 V direct, 100 V direct per channel
- Dimensions (HxWxD): 2U, 438 × 482 × 88 mm
- Weight: 12.7 kg
- Cooling: Front-to-rear variable fan, 50–63 dB @ 1 m depending on speed
