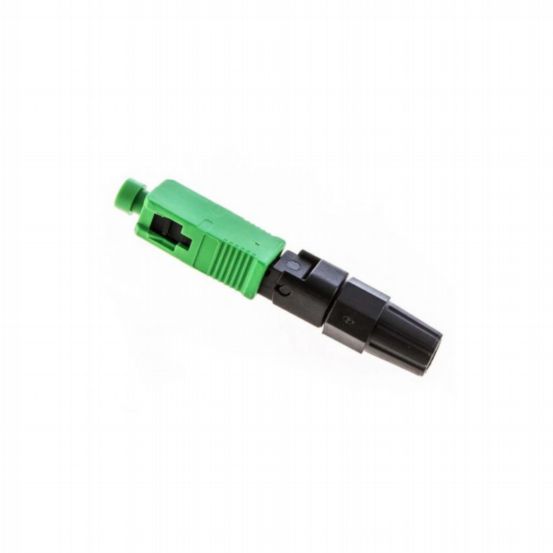

SC - Single Mode Angled Polished Connector

Cleerline Technology - fibre optic cabling
SC - Single Mode Angled Polished Connector

CL-SSF-SC-SMAPC-10

Cleerline SSF™ field installable LC & SC type connectors completely eliminate the need to hand polish, epoxy, or crimp in the field.  Being the easiest to terminate connectors in the industry while requiring no specialised tooling, SSF™ mechanical splice connectors ensure precise fibre alignment producing low loss terminations for all Multimode or Singlemode applications.  SSF™ connectors are compatible with 900µm, 2.0 or 3.0mm fibre optic cabling.  Our exclusive hinge based design and large verification windows allows for easy confirmation of successful termination.  SSF™ connectors are compatible with all SSF™ fibres as well as standard fibre optic cabling.

Variations

Features & Benefits

  • Terminate in as little as one minute
  • Compatible with 900um, 2.0 and 3.0mm cables
  • no crimping or proprietary tooling required
  • Large confirmation window for easy verification
  • Easy fibre insertion with V-groove channel
  • Industry leading hinge clamp strain relief
  • simplified ordering and inventory
