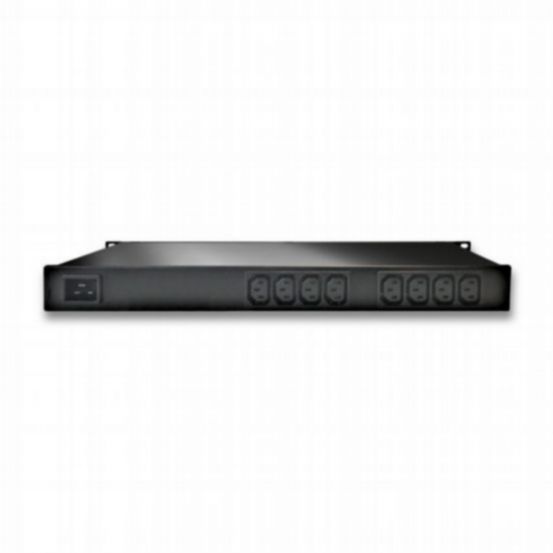

CLEARANCE GUDE 8035-2 8-Fold Switched & Outlet-Metered PDU

GUDE Systems
CLEARANCE GUDE 8035-2 8-Fold Switched & Outlet-Metered PDU

C-GS-80352

The Expert Power Control 8035-2 is an 8-port switched and outlet-metered PDU with IEC C13 Lock outlets, providing secure, energy-efficient power management for 19-inch IT and AV installations. With per-outlet metering, programmable remote reboot, and an integrated 8-channel self-healing watchdog, it enables proactive monitoring, reduces downtime, and increases operational reliability. Integrated plug-and-play sensor ports, overvoltage protection, and flexible network integration via REST API, SNMP, HTTPS, Telnet, or MQTT ensure smart, safe, and efficient infrastructure control.

CLEARANCE: Returned Product ~ Original Packaging ~ 12 Months Warranty

Features & Benefits

  • 8x IEC C13 Lock power ports prevent accidental unplugging and ensure secure connections
  • Individual switching via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT, or serial interface
  • 8-channel self-healing watchdog allows automatic device restart to prevent downtime
  • Event and schedule-controlled switching for energy efficiency and automation
  • Sequential switch-on prevents inrush current peaks and protects connected devices
  • Per-outlet metering of current, voltage, power factor, frequency, active, apparent, and reactive power
  • Dual energy counters per outlet: one continuous, one resettable for precise tracking
  • Residual current metering (Type A, optional Type B) for enhanced safety
  • Two RJ45 sensor ports for temperature, humidity, or air pressure monitoring
  • Integrated type 3 overvoltage protection for safe operation
  • Long-life high-inrush relays for durability under peak loads
  • Encrypted communication (TLS 1.1–1.3, SSH) and IP-based access control
  • Audible and network alerts via e-mail, SNMP traps, syslog, or MQTT
  • Easy-to-read LED display for total current, IP address, and sensor values
  • Firmware updates via Ethernet without rebooting
  • 19-inch, 1U design: 43.9 × 17.8 × 4.4 cm, weight approx. 2.9 kg
  • Operating temperature: 0–50 °C, humidity: 0–95 % non-condensing
