GUDE Systems

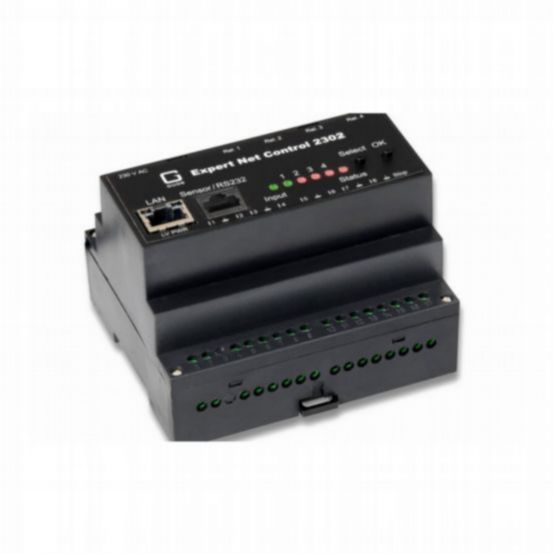

CLEARANCE GUDE 2302-1 IP Relay Controller with 4 Remote Switchable Outputs
C-GS-23021
The Expert Net Control 2302-1 is an IP-controlled relay system for reliable and secure monitoring of IT and AV installations. With 4 remote switchable relay outputs, 8 signal inputs, and a plug-and-play sensor port, it enables proactive detection of environmental hazards, automatic relay control, and self-healing via a 4-channel watchdog. Its fast integration via REST API, SNMP, Modbus TCP, Telnet, SSH, and MQTT, along with encrypted communication, ensures secure, flexible, and efficient infrastructure management.
CLEARANCE: Returned Product ~ Original Packaging ~ 12 Months Warranty
Variations
Features & Benefits
- 4x remote switchable relay outputs with 16 A (230 V AC) / 10 A (24 V DC) capacity
- 8 signal inputs for querying NO/NC devices
- Automatic switching of outputs based on sensor thresholds or input signals
- High-inrush relays prevent contact sticking during switch-on pulses
- Self-healing 4-channel watchdog for automatic recovery of relay outputs
- Plug-and-play RJ45 sensor port for temperature, humidity, or air pressure monitoring
- Encrypted communication via SSL/TLS (1.1–1.3) and SSH
- IP-based access control and password-protected configuration
- Status messages and alerts via e-mail, SNMP traps, syslog, MQTT/MQTTS, Telnet, or SSH
- Easy-to-read LED display for input/output states, IP address, and sensor values
- Compact DIN-rail mountable design: 10.5 × 9 × 7 cm, weight approx. 300 g
- Power supply via industrial clamp (230 V AC or 24 V DC)
- Operating temperature: 0–50 °C, humidity: 0–95 % non-condensing
