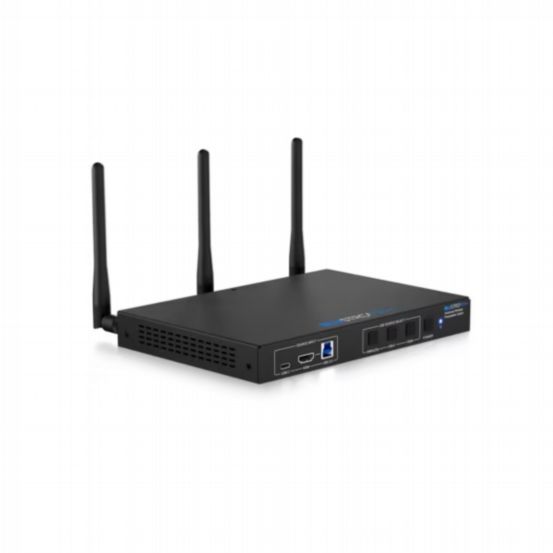

Blustream WMF72 Advanced Wireless Multi-Format Presentation Switch

BU-WMF72

The Blustream WMF72 is a 4K multi-format presentation switch designed for high-end BYOD environments such as boardrooms, classrooms, and collaborative workspaces. It supports wired HDMI and USB-C, AirPlay, Miracast®, Chromecast®, and Blustream wireless dongles (WMF-USBC-D and WMF-HDMI-D), delivering up to 5 concurrent video sources to dual HDMI outputs. It offers multiview layouts, video scaling, USB touch-back, annotation, USB camera and MIC over WiFi, and advanced network integration.

Features & Benefits

  • 4K multi-format, multi-view presentation switch
  • HDMI, USB-C, AirPlay, Miracast®, Chromecast®, and Blustream wireless dongle support
  • Dual HDMI outputs for mirror or desktop extension with managed source control
  • Multiview presentation: up to 5 concurrent video sources with configurable layouts
  • Built-in video scaler with output up to 4K 60Hz 4:4:4
  • USB-C BYOM connection: DP, USB, 1Gbps network, and up to 65W power charging
  • HDMI & USB Type B BYOM connection: USB & 1Gbps network via USB Type B
  • Local 2.4G/5G WiFi hotspot for AirPlay, Miracast®, Chromecast® (point-to-point mode up to 1080p 30Hz)
  • Dual LAN ports for integration into existing networks
  • Supports USB camera and MIC over WiFi (1080p 30Hz)
  • USB touch-back via WMF-USBC-D / WMF-HDMI-D dongles and Miracast®
  • Audio breakout: balanced or unbalanced analogue L/R
  • Web interface for control and configuration
  • On-screen display (OSD) control with preview
  • Whiteboard and screen overlay annotation
  • Control via front panel, RS-232, or TCP/IP, with manual or automated source selection
  • Video Input: 1 x HDMI Type A, 1 x USB Type C
  • Video Output: 2 x HDMI Type A, 19-pin (Main @ 4K max, Sub @ 1080p max)
  • Audio Output: 5-pin Phoenix (2ch balanced/unbalanced analogue)
  • RS-232: 1 x 3-Pin Phoenix connector
  • TCP/IP Control: 2 x RJ45 (1000Mbps x2)
  • USB Connectors: 3 x USB 3.0 Type A, 1 x USB 3.0 Type B
  • USB Touchback: 2 x USB 2.0 Type A
  • USB Pairing: 1 x USB 2.0 Type A, 1 x USB 2.0 Type C
  • WiFi: 3 x SMA, female, MIMO antennas (2.4G & 5G, IEEE 802.11 b/g/n/ac up to 1200Mbps)
  • WiFi Encryption: AES WPA PSK, WPA2 PSK
  • Dimensions (W x H x D): 220mm x 27mm x 161mm (excluding antennas)
