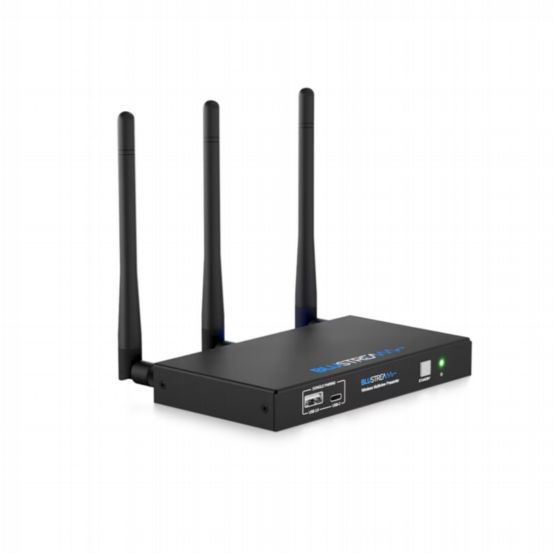

Blustream WMF51 Wireless Multiview Presenter

Blustream
Blustream WMF51 Wireless Multiview Presenter

BU-WMF51

The Blustream WMF51 is a 4K multi-format presentation switch designed for BYOD environments such as boardrooms, classrooms, and huddle spaces. It supports AirPlay, Miracast®, Chromecast®, and Blustream wireless dongles (WMF-USBC and WMF-HDMI), delivering up to 4 concurrent video sources to a single HDMI output. With multi-view layouts, video scaling, USB touch-back, annotation, and network integration, it offers a comprehensive wireless presentation solution.

Features & Benefits

  • 4K multi-format, multi-view presentation switch
  • Supports AirPlay, Miracast®, Chromecast®, and Blustream wireless dongles
  • Multiview presentation: up to 4 concurrent video signals with configurable layouts
  • Built-in video scaler with output up to 4K 60Hz 4:4:4
  • Local 2.4G/5G WiFi hotspot for AirPlay, Miracast®, and Chromecast® (up to 1080p in point-to-point mode)
  • Dual LAN ports for integration with network infrastructures
  • USB 3.0 touch-back via WMF-USBC / WMF-HDMI dongles and Miracast®
  • Analogue audio breakout (L/R)
  • Web interface for control and configuration
  • On-screen display (OSD) control with preview
  • Control via front panel, RS-232, or TCP/IP, with manual or automated source selection
  • Dimensions (W x H x D): 165mm x 22mm x 90mm (excluding antennas)
  • Power Consumption: 3.25W standby, 11W fully loaded
  • Video Output: 1 x HDMI Type A, 19-pin, female
  • Audio Output: 1 x 3.5mm stereo jack (2ch analogue)
  • RS-232: 1 x 3-pin Phoenix connector
  • TCP/IP Control: 2 x RJ45 (1000Mbps x1, 100Mbps x1)
  • USB Connector: 1 x USB 3.0 Type A (touch-back only)
  • USB Pairing: 1 x USB 2.0 Type A, 1 x USB Type C
  • WiFi Antennas: 3 x SMA, female, MIMO (2.4G & 5G, IEEE 802.11 b/g/n/ac up to 1200Mbps)
