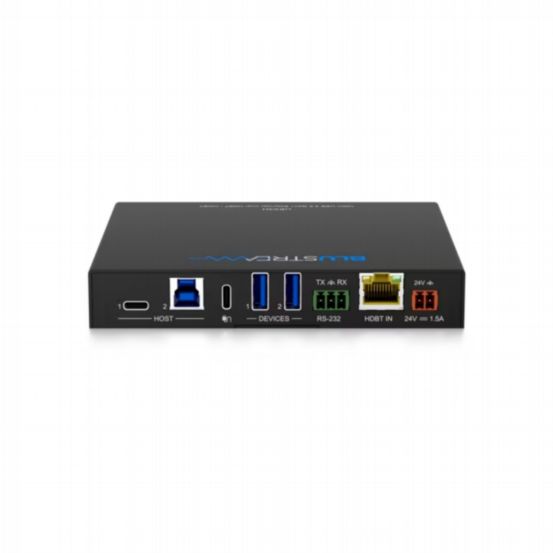

Blustream UEX3H USB 3.2 Gen1 HDBaseT Host Extender - 100m
BU-UEX3H
The Blustream UEX3H is a USB Host solution utilising HDBaseT™ technology to extend USB 3.2 Gen1 device connectivity up to 100m (330ft) over a single CAT6A cable. It allows 2 x USB Hosts to switch between local USB devices and remote USB devices connected via a compatible Blustream USB HDBaseT™ Transmitter (Device). Supporting up to 5Gbps combined transmission bandwidth, the UEX3H is backwards compatible with USB 2.0 and 1.1 devices and includes bi-directional Power over Cable (PoC) and RS-232 pass-through. Auto or manual host selection is available via front panel button or RS-232. Ideal for extending USB 3.2 Gen1 cameras, capture devices, KVM, storage, audio, and other high-speed peripherals.
Features & Benefits
- USB 3.2 Gen1 HDBaseT™ extender supporting 2 x USB Host devices and 2 x local USB Devices
- Supports USB 3.2 signal extension up to 100m over HDBaseT™
- Backwards compatible with USB 2.0 & 1.1 devices
- Combined USB 3.2 Gen1 data transfer rate up to 5Gbps
- 1 x USB-A & 1 x USB-C for host devices (manual or auto switching)
- 2 x USB-A for local devices
- 1 x USB-C host charging port for external power supply to power host device
- Provides up to 500mA combined power to USB devices (up to 500mA per port)
- Configurable USB device power management via API commands
- Bi-directional PoC to power extenders from either host or device (supports 12–48V PoC, PSU supplied with Device end)
- HDBaseT Connector: 1 x RJ45
- USB Host Ports: 1 x USB Type-C, female; 1 x USB Type-A, female
- USB Device Ports: 2 x USB Type-A, female
- USB Hops: 1 x USB hop/tier for this unit (Device end counts as separate hop/tier)
- USB-C Charging Port: 1 x USB Type-C, female
- Local Power Input: 1 x 2-pin Phoenix connector
- Firmware Upgrade: 1 x Micro-USB
- RS-232: 1 x 3-pin Phoenix connector
- Power Supply: 24V/1.5A DC (supplied with Device end)
- Dimensions (W x D x H): 133mm x 120mm x 22mm
