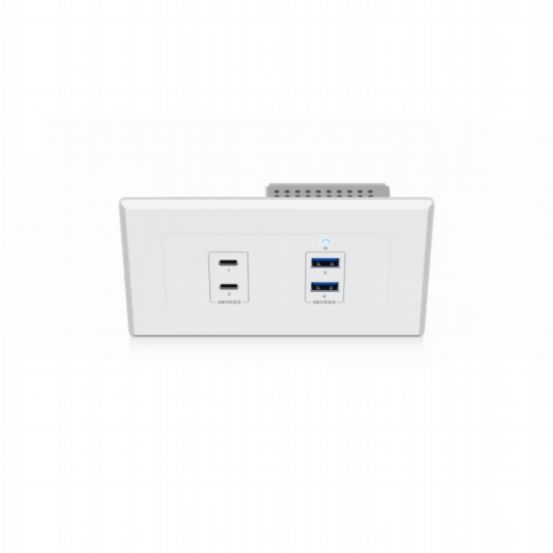

Blustream UEX3D-WP-EU USB 3.2 Gen1 HDBaseT EU Wall Plate Extender

Blustream
Blustream UEX3D-WP-EU USB 3.2 Gen1 HDBaseT EU Wall Plate Extender

BU-UEX3D-WP-EU

The Blustream UEX3D-WP-EU is a USB Device solution utilising HDBaseT™ technology, designed for dual EU/UK wall plate installations. It enables remote connectivity to a USB 3.2 Gen1 Host at distances of up to 100m (330ft) over a single CAT6A cable. The wall plate supports 4 USB devices (2 x USB-A and 2 x USB-C) connected to a compatible Blustream USB HDBaseT™ Receiver (Host), with a combined data bandwidth of up to 5Gbps.

Features & Benefits

  • USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB-C and 2 x USB-A device ports
  • Supports USB 3.2 signal extension up to 100m over HDBaseT™
  • Backwards compatible with USB 2.0 & 1.1 devices
  • Combined USB3.2 Gen1 data transfer rate up to 5Gbps
  • Provides up to 3A combined power to USB devices (up to 1.7A per port)
  • Configurable USB device power management via API commands
  • Bi-directional PoC (supports 12–48V PoC; PSU supplied with Device end only)
  • Bi-directional RS-232 support with compatible HDBaseT™ products
  • HDBaseT Connector: 1 x RJ45
  • USB Device Ports: 2 x USB Type-C, female; 2 x USB Type-A, female
  • USB Hops: 1 x USB hop/tier for this unit (Host end counts as separate hop/tier)
  • Local Power Input: 1 x 2-Pin Phoenix connector
  • Firmware Upgrade: 1 x Micro-USB
  • RS-232: 1 x 3-Pin Phoenix connector
  • Power Supply: 24V/1.5A DC
  • Dimensions (W x H x D, without faceplate): 136mm x 76mm x 46mm
  • Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
  • Mounting Hole Spacing: UK 121mm CTC, EU 60mm CTC
  • Backbox Mounting Depth: 40mm (minimum), 47mm (recommended), UK or EU double gang
