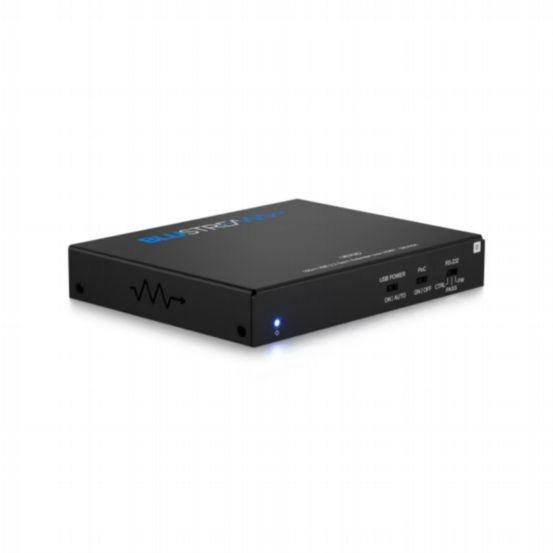

Blustream UEX3D USB 3.2 Gen1 HDBaseT Device Extender - 100m
BU-UEX3D
The Blustream UEX3D is a USB Device solution utilising HDBaseT™ technology to extend USB 3.2 Gen1 connectivity up to 100m (330ft) over a single CAT6A cable. It supports 4 USB devices (2 x USB-A, 2 x USB-C) connecting to a compatible Blustream USB HDBaseT™ Receiver (Host) extender with a combined data bandwidth of up to 5Gbps. Backwards compatible with USB 2.0 and 1.1 devices, the UEX3D also provides bi-directional Power over Cable (PoC) and optional RS-232 pass-through. Ideal for extending USB 3.2 Gen1 cameras, capture devices, flash drives, KVM, and other high-speed USB peripherals.
Features & Benefits
- USB 3.2 Gen1 HDBaseT™ extender supporting 2 x USB Host devices and 2 x local USB devices
- Supports USB 3.2 signal extension up to 100m over HDBaseT™
- Backwards compatible with USB 2.0 and 1.1 devices
- Combined USB 3.2 Gen1 data transfer rate up to 5Gbps
- 2 x USB-A and 2 x USB-C ports for connection to local devices
- Provides up to 3A combined power to USB devices (up to 1.7A per port)
- Configurable USB device power management via API commands
- Bi-directional Power over Cable (PoC), powered from either end (supports 12–48V PoC, PSU supplied with Device end only)
- Supports bi-directional RS-232 when used with compatible HDBaseT™ products
- PoC function can be enabled/disabled via DIP switch
- Simple plug-and-play, no driver installation required
- CAT Connector: 1 x RJ45
- USB Device Ports: 2 x USB Type-C female, 2 x USB Type-A female
- USB Hops: 1 x USB hop/tier for this unit (Host counts as separate hop/tier)
- Local Power Input: 1 x 2-pin Phoenix connector
- Firmware Upgrade: 1 x Micro-USB
- RS-232: 1 x 3-pin Phoenix connector
- Power Supply: 24V/1.5A DC
- Dimensions (W x D x H): 133mm x 105mm x 22mm
