Blustream

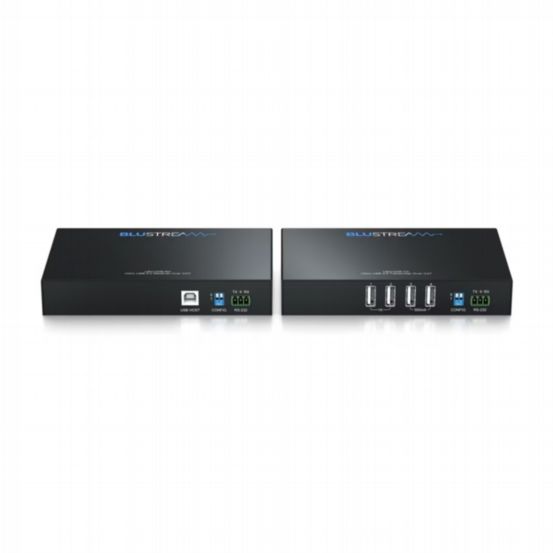

Blustream EUX100-KIT USB 2.0 HDBaseT Extender Set - 100m
BU-UEX100E-KIT
The Blustream UEX100E-KIT is a USB 2.0 extender set using HDBaseT™ technology to extend USB, 2-channel analogue audio, and control signals up to 100m (330ft) over a single CAT cable. It supports up to 4 USB devices connecting to a single host, with combined data bandwidth of up to 480Mbps and backward compatibility with USB 1.1 devices. The kit also provides bi-directional Power over Cable (PoC), IR, RS-232, 2-channel analogue audio, and 100Mbps Ethernet/LAN pass-through. Ideal for professional AV and control installations requiring long-distance USB connectivity.
Features & Benefits
- Extends USB up to 100m over a single CAT cable using HDBaseT™ technology
- Supports USB 2.0 signal extension
- Backwards compatible with USB 1.1 devices
- Combined transmitted data bandwidth up to 480Mbps
- 1 x USB-B on Receiver for connection to host device
- 4 x USB-A on Transmitter for connection to USB devices
- USB-A ports 1–2 support 5V 1A, ports 3–4 support 5V 500mA
- Bi-directional Ethernet pass-through (100Mbps)
- Bi-directional IR & RS-232 pass-through
- Supports 2-channel PCM analogue audio pass-through (direction selectable)
- Bi-directional Power over Cable (PoC) to power extenders from either TX or RX
- Simple plug-and-play, no driver installation required
- Product Dimensions (W x D x H): 150mm x 100mm x 25mm (TX/RX)
