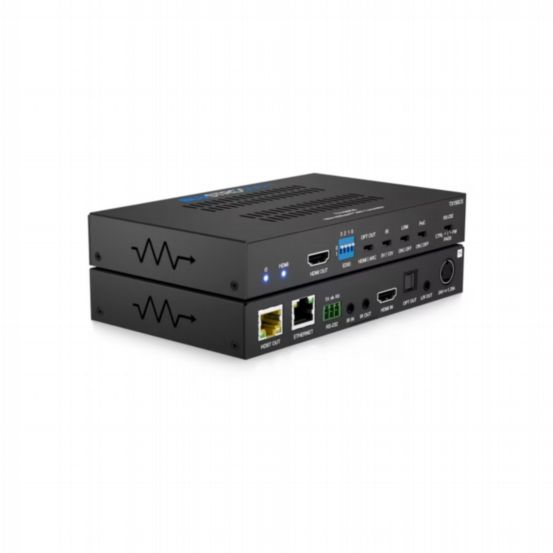

Blustream TX150CS 150m HDBaseT ARC Transmitter

BU-TX150CS

The TX150CS is a Platinum Range HDBaseT™ transmitter offering HDMI 2.0 4K 60Hz 4:4:4 with HDCP 2.2 and Colour Space Conversion (CSC). Designed for professional installations, it extends HDMI, bi-directional IR, and PoC up to 150m over a single CAT cable. Enhanced features include ARC via HDMI or optical (S/PDIF), RS-232, and Ethernet pass-through.

Features & Benefits

  • HDBaseT™ technology for long-distance transmission of video, audio, and control
  • CSC supports HDMI 2.0 18Gbps including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 100m, 1080p up to 150m
  • HDMI re-clocking for improved HDCP, compatibility, and handshaking
  • Supports VGA–WUXGA and 480i–4K resolutions
  • ARC (Audio Return Channel) via HDMI or optical S/PDIF with compatible Blustream RX150CS or PLA88CS matrix
  • Bi-directional PoC for powering the transmitter from matrix, transmitter, or receiver
  • Bi-directional 100Mbps Ethernet pass-through
  • Bi-directional RS-232 and IR pass-through
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio
  • Video Input: 1 x HDMI Type A, female
  • Video Output: 1 x HDBaseT™ RJ45, 1 x HDMI Type A, female (loop)
  • Audio Output: 1 x Optical Toslink (S/PDIF), 1 x 3.5mm L/R analogue
  • RS-232 Port: 1 x 3-pin Phoenix connector
  • Ethernet Port: 1 x RJ45
  • IR Input: 1 x 3.5mm stereo jack
  • IR Output: 1 x 3.5mm mono jack
  • Power Supply: 24V/1.25A DC, 4-pin DIN (not included)
  • Casing Dimensions (W x D x H): 164 x 100 x 25mm
