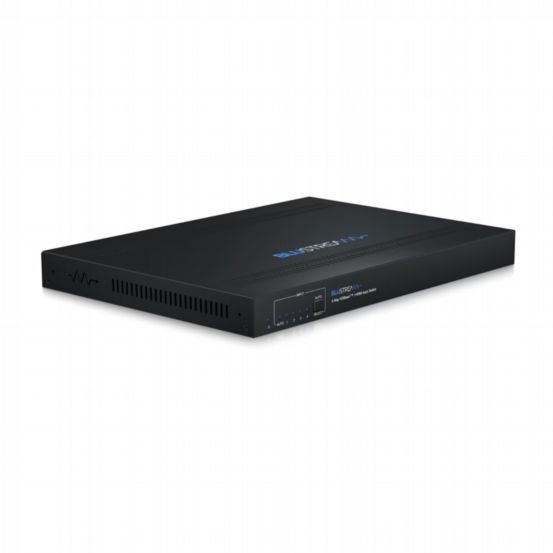

Blustream SW41HDBT 4-Way HDBaseT & HDMI Input Switch
BU-SW41HDBT
The Blustream SW41HDBT is a 4-way HDMI 2.0 and HDBaseT™ input switch designed for seamless switching and signal extension in professional AV environments such as boardrooms, classrooms, and huddle spaces. Utilizing CSC (Colour Space Conversion) technology, it supports full HDMI 2.0 (18Gbps) video performance, including 4K 60Hz 4:4:4 HDR, and delivers simultaneous HDBaseT™ and HDMI outputs for flexible display configurations.
Features & Benefits
- 4-way input switching: 2 x HDMI 2.0 + 2 x HDBaseT™ inputs, switchable to HDMI and HDBaseT™ outputs
- Advanced HDBaseT™ technology: distributes high-quality video, audio, and control over a single CAT cable
- CSC (Colour Space Conversion): supports HDMI 2.0 (18Gbps) specification including HDR
- Supports up to 4K 60Hz 4:4:4 UHD and all common resolutions down to VGA
- Automatic downscaling: converts 4K 60Hz 4:4:4 to 4K 30Hz 4:4:4 / 4K 60Hz 4:2:0 / 1080p for display compatibility
- Up to 40m for 4K 60Hz 4:4:4
- Up to 70m for 1080p (Transmitter to switch and switch to receiver)
- Audio support: all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio
- Audio breakout: simultaneous analogue L/R and optical (S/PDIF) outputs
- Power over Cable (PoC): supplies power to compatible 12V HDBaseT™ transmitters and receivers
- Web GUI interface: provides easy configuration and system control
- Flexible control options: front panel, IR, RS-232, TCP/IP, and auto-switching
- CEC source/display control via HDMI
- HDCP 2.2 compliant with advanced EDID management
- Video Inputs: 2 x HDMI Type A (19-pin, female), 2 x HDBaseT™ RJ45 connectors
- Video Outputs: 1 x HDMI Type A (19-pin, female), 1 x HDBaseT™ RJ45 connector
- Audio Outputs: 1 x Toslink (S/PDIF), 1 x 3.5mm analogue L/R
- RS-232 Control: 1 x 3-pin Phoenix connector
- TCP/IP Control: 1 x RJ45 LAN port
- IR Ports: 2 x 3.5mm stereo jacks
- Casing Dimensions (W x H x D): 305mm x 28mm x 220mm
