Blustream SW41AB-V2 4-Way 4K HDMI Switch with Audio Breakout

Blustream

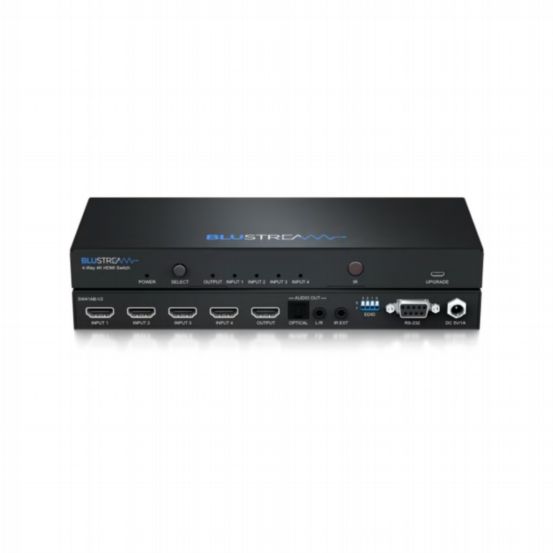

Blustream SW41AB-V2 4-Way 4K HDMI Switch with Audio Breakout

BU-SW41AB-V2

The Blustream SW41AB-V2 is a 4-input, 1-output HDMI switch designed for seamless integration of multiple HDMI sources to a single display. It supports auto-switching, audio breakout, and full HDMI 2.0 / HDCP 2.2 compliance, delivering crystal-clear video up to 4K 60Hz 4:4:4.

Ideal for both residential and commercial AV systems, the SW41AB-V2 ensures easy source management, reliable performance, and flexible control via IR, RS-232, or the front panel.

Features & Benefits

  • 4 x HDMI inputs selectable to a single HDMI output
  • Supports HDMI 2.0 and HDCP 2.2 with up to 4K 60Hz 4:4:4 video
  • Auto-switching based on active input signal detection
  • Audio breakout to analogue L/R and optical (S/PDIF) outputs
  • Supports Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and more
  • Compatible with VGA–4K resolutions and 3D video
  • CEC blocked from inputs to prevent unwanted control signals
  • Control options: Front panel, IR, RS-232
  • Advanced EDID management for seamless integration
  • Video Inputs: 4 x HDMI Type A (female)
  • Video Outputs: 1 x HDMI Type A (female)
  • Audio Outputs: 1 x Optical (S/PDIF), 1 x Analogue L/R (3.5mm jack)
  • IR Input: 1 x 3.5mm stereo jack
  • RS-232 Port: 1 x DB9 (female)
  • Power Supply: 5V / 2A DC
  • Dimensions (W x H x D): 196 x 41 x 94mm (104mm inc. connections)
  • Operating Temperature: 0°C to 40°C
