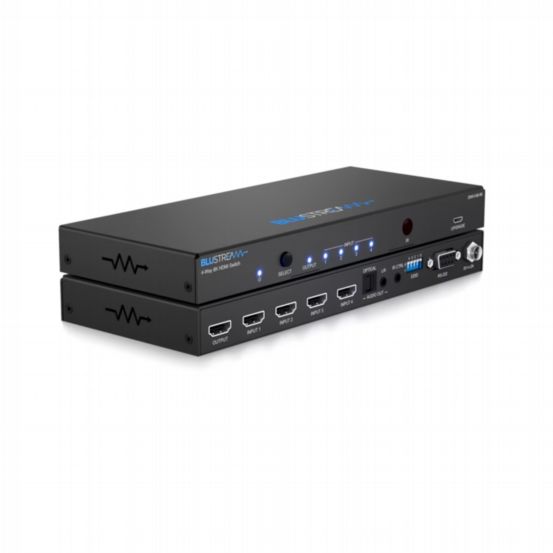

Blustream SW41AB-8K 4-Way 8K HDMI 2.1 Switch with Audio Breakout
BU-SW41AB-8K
The Blustream SW41AB-8K is a premium 4-way HDMI 2.1 switch designed for installations that demand the full capabilities of the latest HDMI 2.1 standard — supporting 8K 60Hz and 4K 120Hz video with HDR. Ideal for high-end home cinema, gaming, and professional AV environments, it allows seamless switching between up to four HDMI sources to a single HDMI output.
Features & Benefits
- 4x HDMI 2.1 inputs switchable to 1x HDMI 2.1 output
- Supports HDMI 2.1 (40Gbps) specification including HDR
- Supports ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate) for enhanced gaming performance
- Compatible with all major HDMI audio formats, including: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Automatic source switching via 5V hot plug or TMDS detection
- Manual switching via front panel, IR remote, or RS-232 control
- Concurrent audio breakout via analogue L/R and optical (S/PDIF) outputs
- 5V / 12V IR compatibility for flexible integration
- HDCP 2.3 compliant with advanced EDID management for optimal source communication
- Video Inputs: 4 x HDMI Type A, 19-pin, female
- Video Output: 1 x HDMI Type A, 19-pin, female
- Audio Outputs: 1 x Optical (S/PDIF) and 1 x Analogue L/R (3.5mm stereo jack)
- IR Input: 1 x 3.5mm stereo jack
- RS-232 Serial Port: 1 x DB9, female
- Power Supply: 5V / 2A DC
- Dimensions (W x D x H): 196 x 104 x 41mm (including connections, without feet)
