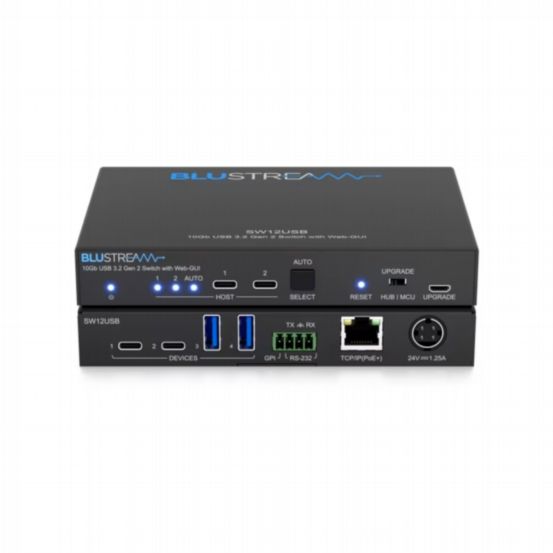

Blustream SW12USB 10Gb USB 3.2 Gen2 Switch

Blustream
Blustream SW12USB 10Gb USB 3.2 Gen2 Switch

BU-SW12USB

The Blustream SW12USB is a high-speed USB 3.2 Gen2 switcher delivering 10Gbps performance. It allows up to 4 USB devices to be switched between 2 USB-C host connections. The switch supports automatic host selection via signal sensing or manual control via front-panel buttons, Web-GUI, TCP/IP, or RS-232, making it ideal for professional AV, conference, and collaborative environments.

Features & Benefits

  • USB 3.2 Gen2 switch supporting 4 USB peripheral devices and 2 USB-C hosts
  • 2 x USB-C and 2 x USB-A device inputs
  • 2 x USB-C host outputs
  • Data transfer rates up to 10Gbps, backwards compatible with USB 2.0 & 1.1
  • Auto or manual host switching
  • Plug-and-play operation with no drivers or software required
  • Control options: front-panel buttons, RS-232, TCP/IP, or Web interface
  • GPI port for integration with 3rd party devices
  • 802.3at PoE+ support for powering the unit via PoE+ network
  • USB Device Ports: 2 x USB Type-A female, 2 x USB Type-C female
  • USB Host Ports: 2 x USB Type-C female
  • GPI / RS-232 Serial Port: 1 x 4-pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • Firmware Upgrade: 1 x Micro-USB
  • Dimensions (W x D x H): 150mm x 110mm x 23mm
