Blustream SP24AB-8K 4-Way 8K HDMI Splitter

Blustream

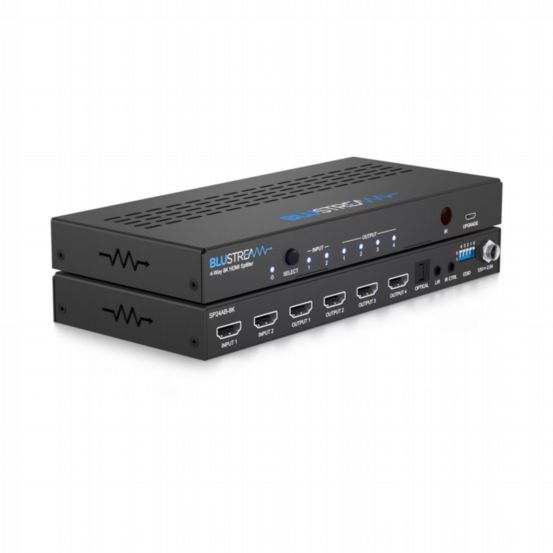

Blustream SP24AB-8K 4-Way 8K HDMI Splitter

BU-SP24AB-8K

The Blustream SP24AB-8K is a high-performance HDMI 2.1 splitter designed to distribute a single HDMI source to up to 4 outputs simultaneously. Supporting resolutions up to 8K 60Hz and 4K 120Hz, it features auto and manual source switching, analogue and optical audio breakout, HDCP 2.3 compliance, and advanced EDID management, making it ideal for high-end AV installations.

Features & Benefits

  • 2 selectable HDMI 2.1 inputs that can be split to 4 HDMI outputs simultaneously
  • Supports up to 8K 60Hz YCbCr 4:2:0, 8K 30Hz RGB/YCbCr 4:4:4, and 4K 120Hz 4:4:4 resolutions
  • HDMI 2.1 features including HDR, ALLM (Auto Low Latency Mode), and VRR (Variable Refresh Rate)
  • Auto source switching via 5V hot plug / TMDS signal sensing, or manual switching via front panel or IR
  • Audio breakout to analogue L/R and optical S/PDIF outputs concurrently for flexible audio integration
  • Supports all major HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • HDCP 2.3 compliant with advanced EDID management for compatibility with a wide range of displays
  • Compact design with front panel control and included IR remote for convenient operation
  • Video Input: 2 x HDMI Type A, Video Output: 4 x HDMI Type A
  • Audio Output: 1 x Analogue L/R (3.5mm), 1 x Optical S/PDIF; IR Input: 3.5mm stereo jack; Upgrade: Micro USB
  • Powered via 12V DC, with durable casing suitable for professional AV installations
