Blustream

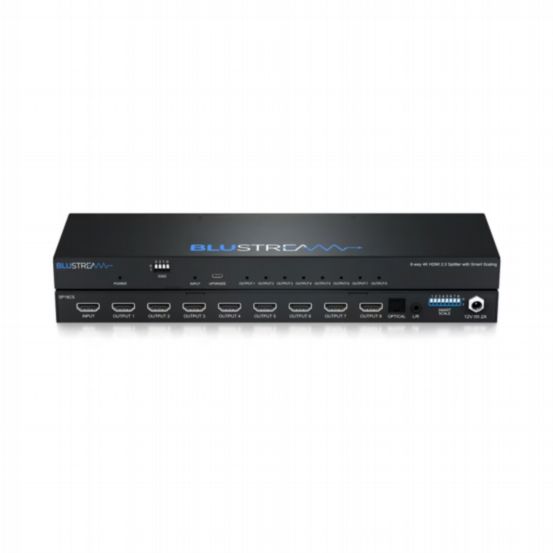

Blustream SP18CS 8-Way 4K HDMI 2.0 HDCP 2.2 Splitter
BU-SP18CS
The SP18CS is a high-performance 4K HDMI 2.0 splitter that distributes a single HDMI source to eight simultaneous HDMI outputs. It supports HDCP 2.2, 18Gbps bandwidth, and HDR, with automatic video downscaling on each output to ensure compatibility with lower-resolution displays. Both digital (optical) and analogue audio breakout are provided.
Features & Benefits
- 1 HDMI input replicated to 8 HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports video resolutions up to 4K UHD 60Hz 4:4:4
- Supports all industry standard video resolutions from VGA to WUXGA and 480i–4K
- Supports all HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
- Audio breakout: analogue L/R and optical digital outputs concurrently
- CEC passes only between the source and output 1
- Video Input: 1x HDMI Type A, 19-pin, female
- Video Outputs: 8x HDMI Type A, 19-pin, female
- Audio Outputs: 1x Digital (optical S/PDIF), 1x Analogue L/R (3.5mm stereo jack)
- EDID Selection: 4-pin DIP switch
- Smart Scaling: 8-pin DIP switch
- Dimensions (W x D x H): 300mm x 92mm x 23mm
