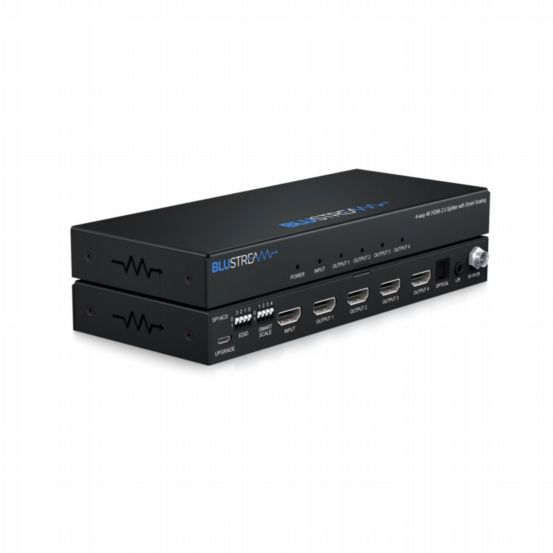

Blustream SP14CS 4-Way 4K HDMI 2.0 Splitter with Audio Breakout

Blustream
Blustream SP14CS 4-Way 4K HDMI 2.0 Splitter with Audio Breakout

BU-SP14CS

The Blustream SP14CS is a high-performance 4-way HDMI splitter that distributes a single HDMI source to four simultaneous HDMI outputs, while providing digital (S/PDIF) and analogue stereo audio breakout for easy audio integration.

Supporting the full HDMI 2.0 (18Gbps) and HDCP 2.2 specifications, the SP14CS delivers stunning 4K 60Hz 4:4:4 video and HDR support. Each output includes automatic video down-conversion, ensuring compatibility with displays that support lower resolutions — perfect for mixed display environments.

Features & Benefits

  • Distributes 1x HDMI input to 4x HDMI outputs simultaneously
  • Supports HDMI 2.0 (18Gbps) and HDCP 2.2
  • Delivers up to 4K UHD 60Hz 4:4:4 with HDR support
  • Compatible with all video resolutions from VGA–4K (480i–WUXGA)
  • Supports all HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • Concurrent audio breakout via optical digital (S/PDIF) and analogue L/R outputs
  • CEC pass-through only between the source and output 1
  • Advanced EDID management with DIP switch configuration
  • Compact design ideal for professional or residential installations
  • Video Input: 1 x HDMI Type A (female)
  • Video Outputs: 4 x HDMI Type A (female)
  • Audio Outputs: 1 x Optical (S/PDIF), 1 x Analogue L/R (3.5mm stereo jack)
  • EDID / Smart Scale: 4-pin DIP switches
  • Power Supply: 5V / 2A DC
  • Dimensions (W x D x H): 203 x 84 x 23mm (without feet)
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
