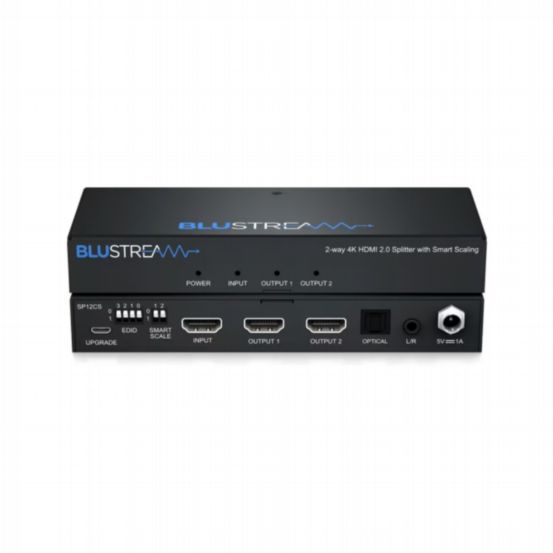

Blustream SP12CS 2-Way 4K HDMI 2.0 HDCP 2.2 Splitter

Blustream
Blustream SP12CS 2-Way 4K HDMI 2.0 HDCP 2.2 Splitter

BU-SP12CS

The Blustream SP12CS is a 2-way HDMI 2.0 splitter that distributes a single HDMI source to two simultaneous outputs with both digital (S/PDIF) and analogue audio breakout. It supports HDMI 2.0, HDCP 2.2, and video resolutions up to 4K UHD 60Hz 4:4:4, making it ideal for home or professional AV setups.

Features & Benefits

  • 1 HDMI input replicated to 2 HDMI outputs for simultaneous display
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports 4K UHD 60Hz 4:4:4 with video down-conversion for legacy displays
  • Compatible with all standard video resolutions from VGA to 4K and all HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio
  • HDMI audio breakout to analogue L/R and optical digital outputs concurrently
  • CEC passes only between the source and the sink connected to output 1
  • Advanced EDID management and HDCP 2.2 compliant
  • Video Input: 1x HDMI Type A; Video Output: 2x HDMI Type A
  • Audio Output: 1x Digital (Optical), 1x Analogue L/R (3.5mm stereo jack)
  • EDID and Smart Scale DIP switches for flexible configuration
  • Compact and durable design; Power Supply: 5V/1A DC
