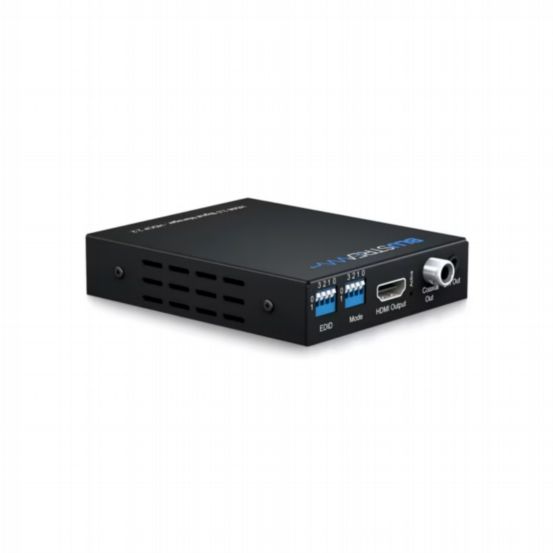

Blustream SM11 Advanced HDMI Signal Manager with Audio Embedder & De-Embedder
BU-SM11
The SM11 is an advanced HDMI signal management device designed to resolve HDMI compatibility, EDID, HDCP 2.2, clock stretching, and handshaking issues, which are common when distributing 4K content. It also provides audio embedding and de-embedding, allowing up to 7.1-channel audio to be extracted or inserted into the HDMI signal path.
Features & Benefits
- Solves HDMI EDID, HDCP, compatibility, and handshaking issues
- Supports full HDMI 2.0 specification, 4K UHD video up to 60Hz 4:4:4
- Supports all standard video resolutions including VGA–WUXGA and 480i–4K
- Audio de-embedding to analogue L/R and coaxial digital outputs concurrently (analogue supports 2ch PCM only)
- Audio embedding of analogue L/R 2ch audio onto HDMI output
- Supports pass-through of HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio
- Can function as either an HDMI audio de-embedder or audio embedder
- Can extract audio with or without a display connected (acts as HDMI end-point)
- Video Input: 1 x HDMI Type A, 19-pin, female
- Video Output: 1 x HDMI Type A, 19-pin, female
- Audio Input: 1 x Analogue L/R (3.5mm stereo jack)
- Audio Output: 1 x RCA (S/PDIF) & 1 x Analogue L/R (3.5mm stereo jack)
- Casing Dimensions (W x H x D): 105mm x 23mm x 87mm
- Dimensions Including Connections (W x H x D): 114mm x 23mm x 87mm
