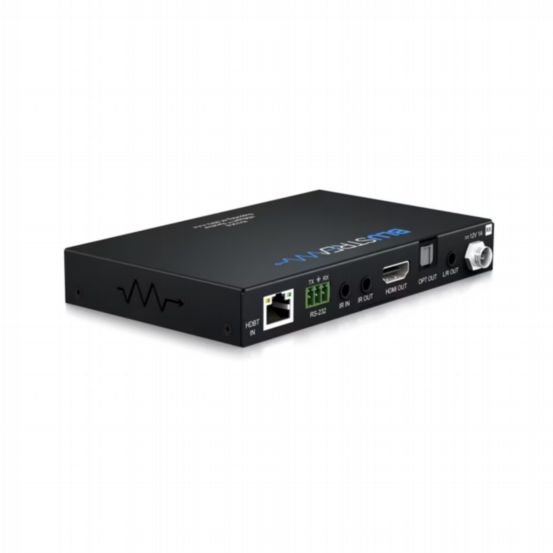

Blustream RX70CS HDBaseT CSC Receiver - 70m
BU-RX70CS
The RX70CS is a high-performance HDBaseT™ ARC receiver designed for HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2 and advanced Colour Space Conversion (CSC). It extends HDMI, bi-directional IR, and RS-232 signals over a single CAT cable and is powered via compatible Blustream matrices or local power. The receiver also supports Audio Return Channel (ARC) and provides simultaneous analogue stereo and optical Toslink audio breakout.
Features & Benefits
- HDBaseT™ technology for video, audio, and control distribution over a single CAT cable
- CSC technology supports HDMI 2.0 18Gbps including HDR
- Extends HDMI 1080p up to 70m, 4K 60Hz 4:4:4 up to 40m
- Automatic downscaling of 4K input to 1080p for lower-resolution displays
- Supports VGA–WUXGA and 480i–4K resolutions
- ARC support via HDMI or optical digital inputs when used with compatible Blustream transmitter or matrix
- Supports all HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio
- Bi-directional RS-232 and IR pass-through
- Bi-directional PoC (Power over Cable) to power RX70CS or a connected HDBaseT transmitter
- Recommended for Blustream AMF42AU, C6CS, C88CS, HMXL66ARC, and HMXL88ARC matrices
- Video Input: 1 x HDBaseT™ RJ45
- Video Output: 1 x HDMI Type A, 19-pin, female
- Audio Input (ARC): 1 x Toslink (S/PDIF)
- Audio Output: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R analogue (breakout from HDBaseT input)
- RS-232: 1 x 3-pin Phoenix connector
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Casing Dimensions: 140 x 84 x 18mm (without connections), 140 x 98 x 18mm (with connections)
- Power Supply: 12V/1A DC, screw connector
