Blustream

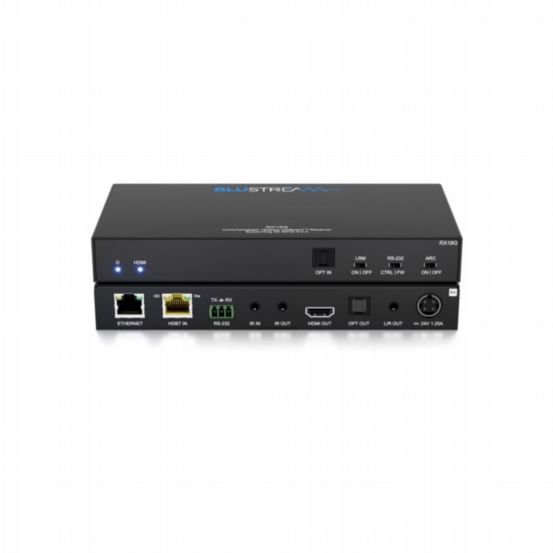

Blustream RX18G Uncompressed 18Gbps HDBaseT Receiver
BU-RX18G
The RX18G is a professional uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 receiver utilising HDBaseT™ 3.0 technology. It is designed for the highest quality video and audio distribution over a single CAT6A cable up to 100m, supporting HDR10/10+ and Dolby Vision for critical viewing environments.
The RX18G also provides bi-directional IR, RS-232, ARC, 1Gb Ethernet pass-through, and PoC, making it ideal for integration with Blustream matrix solutions.
Features & Benefits
- HDBaseT™ 3.0 technology delivering uncompressed 4K 60Hz 4:4:4 HDMI
- Supports HDR10/10+ and Dolby Vision
- Extends HDMI 1080p video up to 150m (long-reach mode)
- ARC (Audio Return Channel) via HDMI or Optical (S/PDIF)
- Bi-directional 1Gb Ethernet pass-through
- Bi-directional IR and RS-232 pass-through
- Supports all standard HDMI audio formats, including Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and Dolby Digital Plus
- PoC (Power over Cable) from compatible Blustream matrix
- Recommended for use with HMX88-18G and HMX44-18G matrix systems
- Video Input: 1 x HDBaseT™ RJ45
- Video Output: 1 x HDMI Type A, female
- Audio Input: 1 x Optical (S/PDIF)
- Audio Output: 1 x Analogue L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)
- RS-232 Input: 1 x 3-pin Phoenix
- Ethernet: 1 x RJ45
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Casing Dimensions (W x H x D): 190 x 100 x 25mm
- Dimensions Including Connections: 190 x 108 x 25mm
- Power Supply: 24V/1.25A DC, 4-pin DIN
