Blustream

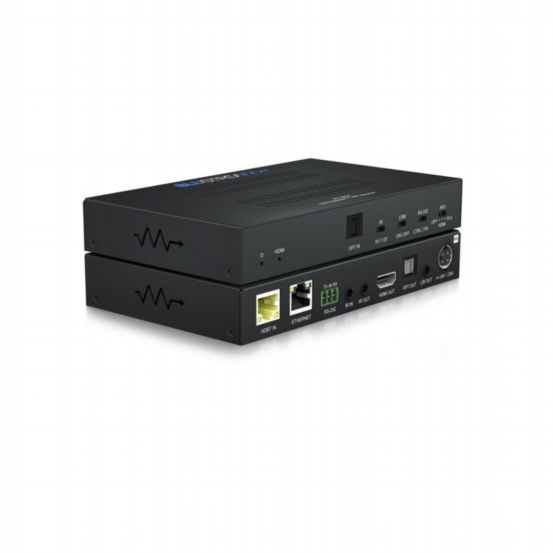

Blustream RX150CS 150m HDBaseT CSC Receiver
BU-RX150CS
The RX150CS is a Platinum Range HDBaseT™ receiver supporting HDMI 2.0 4K 60Hz 4:4:4 with HDCP 2.2 and Colour Space Conversion (CSC). Designed for professional installations, it extends HDMI, bi-directional IR, and RS-232 up to 150m (1080p) or 100m (4K) over a single CAT cable.
The RX150CS also supports ARC and Ethernet pass-through when used with compatible Blustream hardware, and provides simultaneous analogue stereo and optical Toslink audio breakout.
Features & Benefits
- Advanced HDBaseT™ technology for long-distance video, audio, and control distribution
- CSC supports HDMI 2.0 18Gbps including HDR
- Supports 4K 60Hz 4:4:4 UHD video up to 100m and 1080p up to 150m
- Automatic downscaling of 4K 60Hz 4:4:4 video to 1080p for legacy displays
- Supports VGA–WUXGA and 480i–4K resolutions
- ARC (Audio Return Channel) via HDMI or Optical S/PDIF with compatible Blustream transmitter/matrix
- Bi-directional Ethernet pass-through with compatible Blustream solutions
- Supports all HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Bi-directional RS-232 pass-through
- Bi-directional IR pass-through
- PoC (Power over Cable) from Blustream matrix or transmitter
- Recommended receiver for Blustream PLA88CS matrix
- Video Input: 1 x HDBaseT™ RJ45
- Video Output: 1 x HDMI Type A, 19-pin, female
- Audio Input: 1 x Toslink (S/PDIF)
- Audio Output: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R analogue audio
- RS-232: 1 x 3-pin Phoenix connector
- Ethernet Port: 1 x RJ45
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Power Supply: 24V/1.25A DC
- Casing Dimensions (W x D x H): 164 x 100 x 25mm
