Blustream

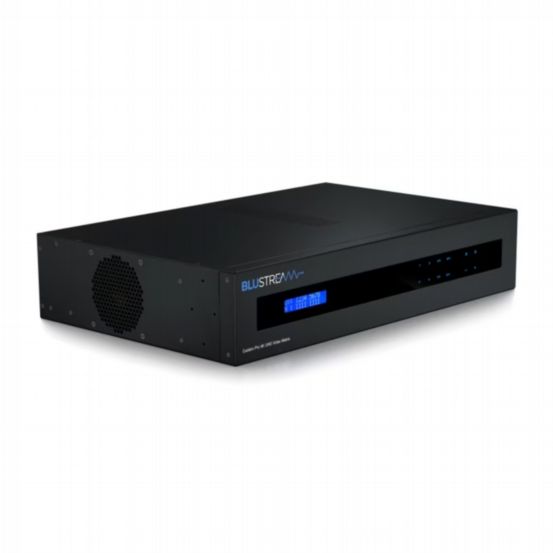

Blustream Custom Pro 8x8 HDBaseT™ CSC Matrix - 70m
BU-PRO88HBT70CS
The Blustream Custom Pro 8x8 HDBaseT™ CSC Matrix - 70m is a professional-grade HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix designed for custom installations requiring high-performance 4K HDR video distribution over HDBaseT™. Utilising Colour Space Conversion (CSC) technology, it allows independent downscaling on outputs, supports 8 HDMI inputs routed to 8 HDBaseT™ outputs, provides 4 simultaneous HDMI outputs, audio breakout with pre-amp volume control, bi-directional IR, PoC, and full control via web GUI, front panel, RS-232, IR, or TCP/IP, making it ideal for multi-zone AV environments.
Features & Benefits
- HDBaseT™ technology distributes video and audio over a single CAT cable
- Advanced CSC supports HDMI 2.0 18Gbps specification including HDR
- 8 HDMI inputs independently routed to 8 HDBaseT™ outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Independent down-scaling of 4K video to 1080p 60Hz or 4K 60Hz 4:2:0
- Supports all standard video resolutions including VGA-WUXGA and 480i-4K HDR
- Bi-directional IR support, supplied with IR receivers and emitters
- 8 coaxial digital & variable line-level analogue L/R audio outputs
- Supports PoC to power compatible HDBaseT™ receivers
