Blustream

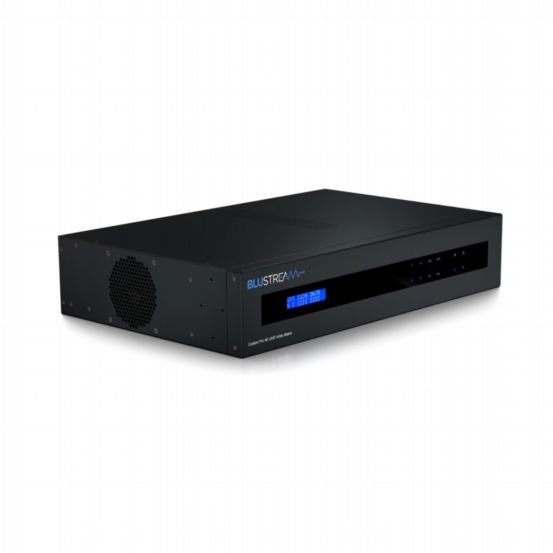

Blustream Custom Pro 4x8 HDBaseT™ CSC Matrix - 70m
BU-PRO48HBT70CS
The Blustream Custom Pro 4x8 HDBaseT™ CSC Matrix - 70m is a high-performance HDMI 2.0 4K 60Hz 4:4:4 matrix designed for custom AV installations. Using HDBaseT™ with Colour Space Conversion (CSC), it delivers video, audio and bi-directional IR over a single CAT cable up to 70m (4K HDR up to 40m). The matrix supports independent downscaling of 4K inputs to accommodate displays with lower resolution capabilities while maintaining full 4K UHD on higher-end screens. With audio embedding, PoC support, web-based control and compatibility with Blustream HEX70CS-RX receivers, it offers a flexible, professional solution for distributing 4K HDR video and multi-channel audio across multiple zones.
Features & Benefits
- 4 × HDMI inputs independently routed to 8 × HDBaseT™ outputs
- Supports 4K UHD 60Hz 4:4:4 video up to 40m and 1080p up to 70m
- Supports 4K HDR and all standard resolutions VGA–WUXGA, 480i–4K HDR
- Analogue audio inputs embeddable onto any HDMI input
- Web interface, front panel, RS-232 and TCP/IP control
- PoC (Power over Cable) support for compatible HDBaseT™ receivers
- 2U rackmount design with mounting kit included
