Blustream

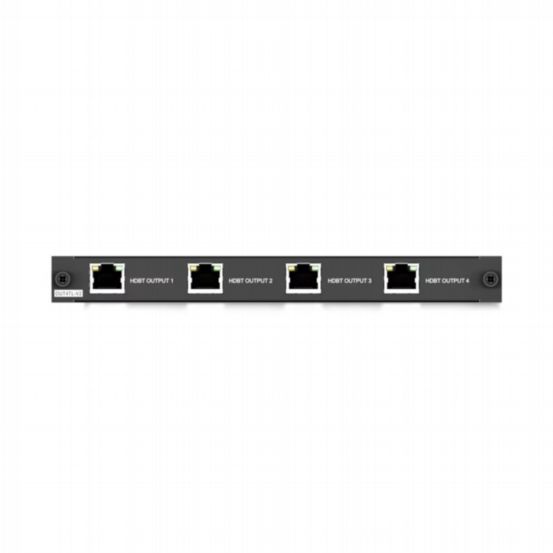

Blustream PRO-OUT4TL-V2 4-Way HDBaseT CSC Output Board
BU-PRO-OUT4TL-V2
The Blustream PRO-OUT4TL-V2 is a professional 4-way HDBaseT™ CSC output board designed for seamless integration into the Custom Pro Matrix hub. Engineered to deliver HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) video with HDR and HDCP 2.2 compliance, it enables reliable, long-distance signal distribution over a single CAT cable — up to 40m for 4K and 70m for 1080p.
Features & Benefits
- 4 x HDBaseT™ outputs for direct connection to compatible HDBaseT™ receivers
- Advanced HDBaseT™ technology delivers video, audio, and control over a single CAT cable
- CSC (Colour Space Conversion) supports HDMI 2.0 (18Gbps) with HDR and HDCP 2.2 compliance
- Supports up to 4K 60Hz 4:4:4 UHD video transmission up to 40m
- Extends 1080p signals up to 70m
- Supports all known HDMI audio formats, including: Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio
- Supports PoC (Power over Cable) for powering compatible Blustream HDBaseT™ receivers
- Quick-release modular design for simple installation and maintenance within the Custom Pro Matrix hub
- To be used with the HEX70CS-RX receivers for optimal performance
- Video Outputs: 4 x HDBaseT™ RJ45 connectors
- Card Dimensions (W x H x D): 182mm x 22mm x 177mm
- Dimensions (with connections): 202mm x 22mm x 188mm
