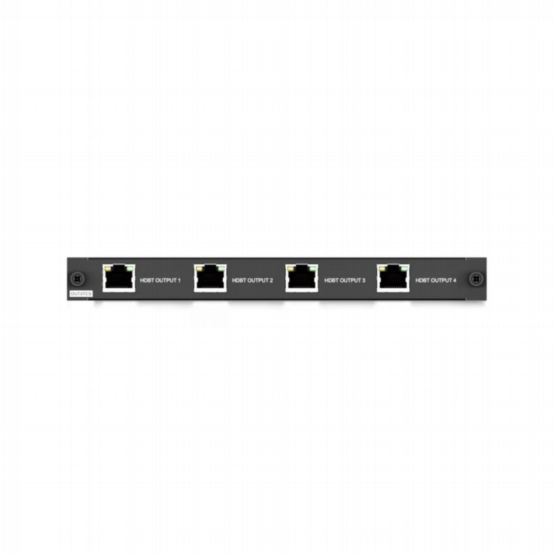

Blustream PRO-OUT4TCS 4-Way HDBaseT CSC Output Board
BU-PRO-OUT4TCS
The Blustream PRO-OUT4TCS is a professional 4-way HDBaseT™ CSC output board designed for the Custom Pro Matrix hub, enabling high-performance HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) distribution with HDR and HDCP 2.2 compliance. Using Colour Space Conversion (CSC) technology, the PRO-OUT4TCS ensures uncompromised 4K signal integrity over extended distances — up to 70m for 4K and 100m for 1080p — via a single CAT cable.
Features & Benefits
- 4 x HDBaseT™ outputs for connection to compatible receivers
- Advanced HDBaseT™ technology transmits video, audio, and control over a single CAT cable
- CSC (Colour Space Conversion) supports HDMI 2.0 (18Gbps) including HDR and HDCP 2.2
- Supports up to 4K 60Hz 4:4:4 UHD video up to 70m
- Extends 1080p video up to 100m
- Supports all known HDMI audio formats, including: Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio
- Supports PoC (Power over Cable) for powering compatible Blustream HDBaseT™ receivers
- Quick-release modular fitting for simple population and maintenance in the Custom Pro Matrix Hub
- Designed for use with HEX100CS-RX receivers
- Video Outputs: 4 x HDBaseT™ RJ45 connectors
- Card Dimensions (W x H x D): 182mm x 22mm x 177mm
- Dimensions (with connections): 202mm x 22mm x 188mm
