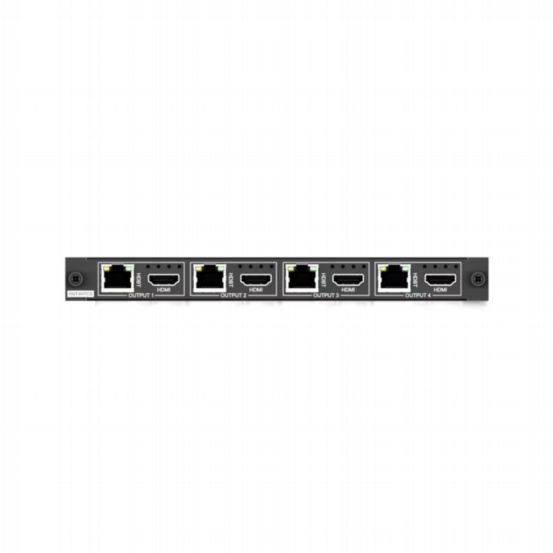

Blustream PRO-OUT4HTCS 4-Way Simultaneous HDMI & HDBaseT CSC Output Board
BU-PRO-OUT4HTCS
The Blustream PRO-OUT4HTCS is a premium 4-way output board designed for the Custom Pro Matrix hub, offering dual simultaneous HDMI and HDBaseT™ outputs per zone. This design enables each zone to connect both a local HDMI display and a remote HDBaseT™ receiver, delivering maximum installation flexibility across residential and commercial environments.
Features & Benefits
- 4 x dual HDMI / HDBaseT™ outputs for simultaneous connection to HDMI displays and HDBaseT™ receivers
- Advanced CSC (Colour Space Conversion) technology supporting HDMI 2.0 (18Gbps) and HDR
- 1080p 60Hz (for non-4K displays)
- 4K 60Hz 4:2:0 (for displays not supporting 4K 60Hz 4:4:4)
- Supports 4K 60Hz 4:4:4 UHD video up to 70m
- Extends HDMI 1080p video up to 100m
- Supports all HDMI audio formats, including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio
- Supports PoC (Power over Cable) to power compatible Blustream HDBaseT™ receivers
- Quick-release modular card fittings for fast installation into the Custom Pro Matrix hub
- HDCP 2.2 compliant
- Compatible with Blustream HEX100CS-RX receivers
- Video Output Connectors: 4 x HDBaseT™ RJ45 connectors
- Card Dimensions (W x H x D): 182mm x 22mm x 177mm
- Dimensions (with connections): 202mm x 22mm x 188mm
