Blustream

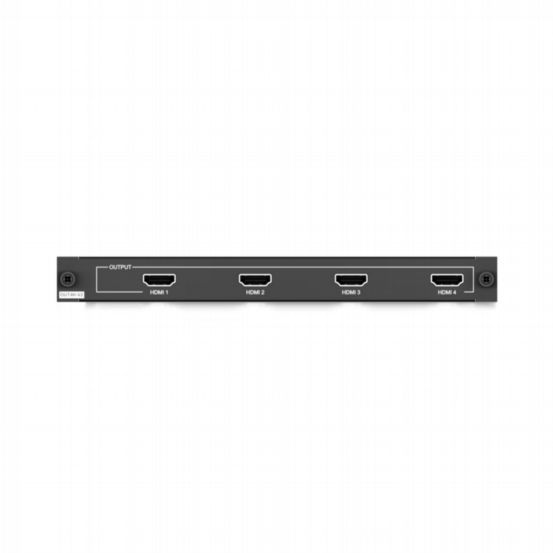

Blustream PRO-OUT4H-V2 4-Way HDMI 2.0 Output Board - 18Gbps
BU-PRO-OUT4H-V2
The Blustream PRO-OUT4H-V2 is a 4-way HDMI 2.0 output card designed for use within the Custom Pro Matrix Hub, providing high-performance 4K UHD signal distribution to multiple independent HDMI displays. Supporting HDMI 2.0 18Gbps with HDCP 2.2 compliance, it ensures full compatibility with the latest 4K HDR video formats and premium multi-channel audio standards.
Features & Benefits
- 4 x HDMI outputs for connection to independent displays
- Supports HDMI 2.0 specification up to 18Gbps, including HDR
- Delivers up to 4K UHD 60Hz 4:4:4 video resolution
- Compatible with all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, and DTS-HD Master Audio
- Quick-release module design for simple population and service within the Custom Pro Matrix Hub
- HDCP 2.2 compliant
- Video Output Connectors: 4 x HDMI Type A, 19-pin, female
- Card Dimensions (W x H x D): 182mm x 22mm x 177mm
- Dimensions (Including Connections): 202mm x 22mm x 188mm
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
